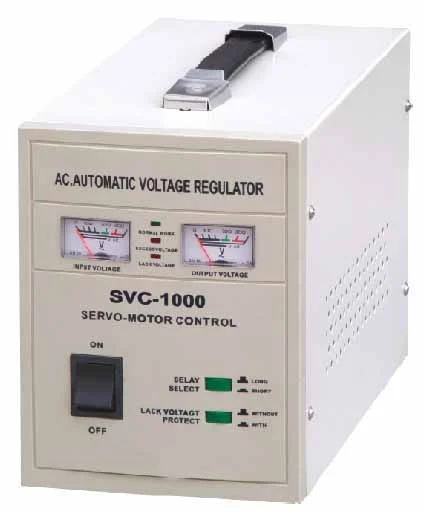

About the SVC-H Voltage Stabilizer
The SVC-H Voltage Stabilizer is part of the ELEHPD UPS And Stabilizer range. General SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer SVC-H series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over - voltage protection and under-voltage protection, besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price. Performance SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer lnput voltage Single-phase 160V-250V Delay time Long 5min±2min,short 5s±2s Output voltage Single-phase 220V and 110V Ambient temperature -5℃--+40℃ Accuracy of voltage stabilization 220V±3%and 110V±6% Relative humidity ≤90% frequency 50Hz/60Hz Waveform distortion No additional waveform distortion Adjusting time <1s (when input voltage has a change of 10%) Load power factor 0.8 Efficiency >90% Dielectric strength 1500/min Over-voltage protection 246V±４Ｖ lnsulation resistance ≥2MΩ Model and specification SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer Spec(KVA) Product size D×W×H(cm) Product size D×W×H(cm) Weight(kg) Qty SVC-H0.5 22×14×20 39×29×47 4.5 4 SVC-H1 23×14×20 39×31×47 6 4 SVC-H1.5 23×14×20 39×31×47 6.5 4 SVC-H2 28×14×20 39×35×47 8 4 SVC-H3 34×21×29 42×29×36 14 1 SVC-H5 40×21×29 48×29×37 21.5 1 Application (SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer) For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right UPS And Stabilizer
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
![]()
| General SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
SVC-H series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of
luxurious appearance , strong protection functions like over - voltage protection and under-voltage protection,
besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance
and price.
|
| Performance SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
| lnput voltage |
Single-phase 160V-250V |
Delay time |
Long 5min±2min,short 5s±2s |
| Output voltage |
Single-phase 220V and 110V |
Ambient temperature |
-5℃--+40℃ |
| Accuracy of voltage stabilization |
220V±3%and 110V±6% |
Relative humidity |
≤90% |
| frequency |
50Hz/60Hz |
Waveform distortion |
No additional waveform distortion |
| Adjusting time |
<1s (when input voltage has a change of 10%) |
Load power factor |
0.8 |
| Efficiency |
>90% |
Dielectric strength |
1500/min |
| Over-voltage protection |
246V±４Ｖ |
lnsulation resistance |
≥2MΩ | |
| Model and specification SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer |
| Spec(KVA) |
Product size D×W×H(cm) |
Product size D×W×H(cm) |
Weight(kg) |
Qty |
| SVC-H0.5 |
22×14×20 |
39×29×47 |
4.5 |
4 |
| SVC-H1 |
23×14×20 |
39×31×47 |
6 |
4 |
| SVC-H1.5 |
23×14×20 |
39×31×47 |
6.5 |
4 |
| SVC-H2 |
28×14×20 |
39×35×47 |
8 |
4 |
| SVC-H3 |
34×21×29 |
42×29×36 |
14 |
1 |
| SVC-H5 |
40×21×29 |
48×29×37 |
21.5 |
1 | |
| Application (SVC-H(luxurious type)high accuracy full-automatic AC voltage stabilizer) |
For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance,
lighting system, communication system, etc. |
Frequently asked questions about the SVC-H Voltage Stabilizer
How much headroom should I leave on the power rating?
For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.
Do these units accept 110 V and 230 V mains?
Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.
What protection features are built in?
Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.
Can you supply matching DIN-rail or enclosed versions?
Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
