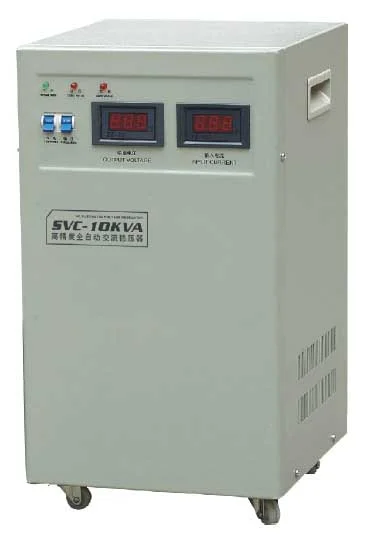

About the SVC-E Voltage Stabilizer
The SVC-E Voltage Stabilizer is part of the ELEHPD UPS And Stabilizer range. General SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer SVC-E (digital display type) series single-phase voltage stabilizer adopts digital display technology, it can display the delay time, output voltage and protection state automatically and has advantages of time-delay protection, over-voltage and under-voltage protection, automatic alarming, etc. (Note: products of 2KVA and above 2KVA only has protection time - delay protection, over - voltage and under-voltage protection, and also has function of putting through commercial power directly) ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right UPS And Stabilizer
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit
Specifications
![]()
![]()
| General SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
|
SVC-E (digital display type) series single-phase voltage stabilizer adopts digital display technology, it can display
the delay time, output voltage and protection state automatically and has advantages of time-delay protection,
over-voltage and under-voltage protection, automatic alarming, etc. (Note: products of 2KVA and above 2KVA only
has protection time - delay protection, over - voltage and under-voltage protection, and also has function of putting
through commercial power directly) |
| Application SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
|
For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance,
lighting system, communication system, etc. |
| Input Voltage |
Single-phase 160V-250V |
| Output Voltage |
1、0.5KVA-3KVA：单相220V与110V
2、5KVA-30KVA：单相220V |
| Precision |
220V±3%与110V±6% |
| Frequency |
50Hz/60Hz |
| Adjusting Time |
<1秒(输入电压变化10%时) |
| Efficiency |
>90% |
| Over-voltage protection |
246V±4V |
| Delay-time |
长5分±2分，短5秒±2秒 |
| Ambient Temperature |
-10℃-+40℃ |
| Relative humidity |
<95% |
| Exotherm |
<60℃ |
| waveform distortion |
no additional waveform distortion |
| Load power factor |
0.8 |
| Dielectric Strength |
1500V/min |
| Insulation Resistance |
>5MΩ | |
| Model and specification SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
| Spec(KVA) |
Product size D×W×H(cm) |
Packing size D×W×H(cm) |
Weight(kg) |
Qty |
| SVC-E0.5 |
17×19×13 |
44×25×35 |
5 |
4 |
| SVC-E1 |
20×22×16 |
50×28×40 |
7 |
4 |
| SVC-E1.5 |
20×22×16 |
50×28×40 |
8 |
4 |
| SVC-E2 |
2.6×24×19 |
34×32×50 |
14 |
2 |
| SVC-E3 |
29×22×24 |
62×38×34 |
16 |
2 |
| SVC-E5 |
19×24×40 |
31×29×48 |
28 |
1 |
| SVC-E8 |
29×24×42 |
40×35×52 |
39 |
1 |
| SVC-E10 |
29×24×42 |
40×35×52 |
40 |
1 |
| SVC-E15 |
40×33×65 |
52×45×74 |
75 |
1 |
| SVC-E20 |
58×35×68 |
70×47×68 |
11 |
1 |
| SVC-E30 |
48×40×96 |
60×52×106 |
165 |
1 | |
Frequently asked questions about the SVC-E Voltage Stabilizer
How much headroom should I leave on the power rating?
For continuous industrial duty plan on 20-30 % headroom above the measured load. For loads with high inrush, such as motors or capacitive input, allow more and check the surge rating rather than only the average current.
Do these units accept 110 V and 230 V mains?
Input ranges are model-specific and shown in the specification table. Where a wide-range input is available it is stated; otherwise send your mains voltage and we will match the model.
What protection features are built in?
Typical protection covers short circuit, over-current, over-voltage and thermal shutdown. The exact set is listed per model in the specification table above.
Can you supply matching DIN-rail or enclosed versions?
Open-frame, enclosed and DIN-rail variants exist across this family. Send the model you are working from and we will confirm the equivalent mounting option.
