Specifications

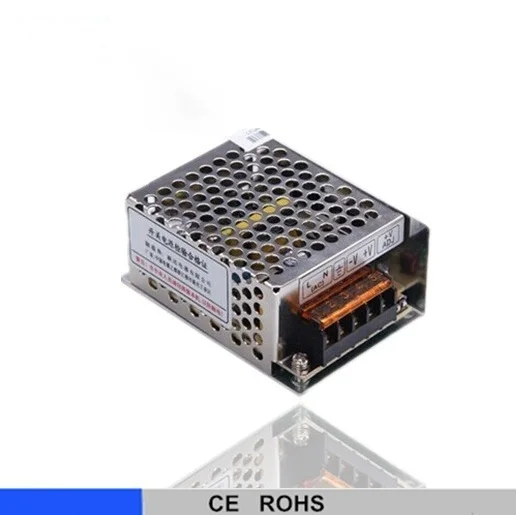

small volume size MS series switching mode power supply export quality MS 15W

Features:
Had 170 ~ 264 VAC input voltage range
Had small volume, light weight, high efficiency
Characteristics: short circuit protection miscalculates/overload
Had natural cooling
With that took on light emitting diode (led)
1 0, 0% had burned machine full load test
1 years had quality guarantee
SPECIFICATION :

(Specification)	MS-15-5	MS-15-12	MS-15-24
DC output voltage	5V	12V	24V
Output voltage range	±2%	±1%	±1%
Rated output current	3A	1.3A	0.7A
Output current range	0-3A	0-1.3A	0-0.7A
Wave and noise	75mVp-p	50mVp-p	50mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%
DC output power	15W	15.6W	16.8W
Efficiency	73%	78%	80%
Adjustable range for DC voltage	+10,-5%	±10%	±10%
AC input voltage range	AC 170-240VAC 47-63Hz,240-370VDC
Input current	0.25A/230V
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	…………
High-temperature protection	…………
Temperature coefficient	±0.02%/°C(0~50°C)
Setup, rise, hold up time	200ms,100ms,30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
Isolation resistance	input and output internal : input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	845838mm
Weight	0.3kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
