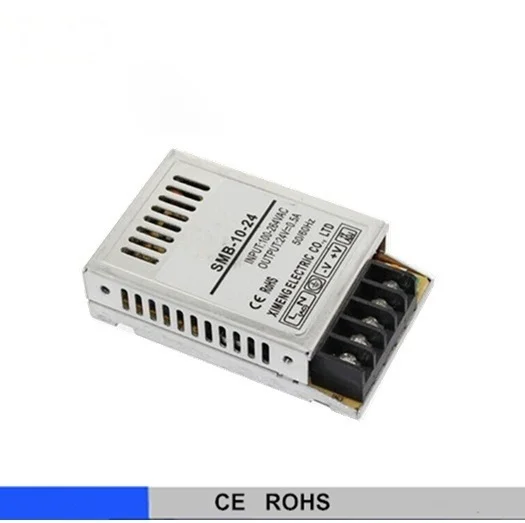

mini type ultra thin industry switching power supply series SMB-10W
Features:

1.100% full load burn-in test.

2.1 years warranty.

3. High property price

4.High quality as same as made in Europe or America.

Specification:

full range input switching power supply

Model	SMB-10-5	SMB-10-12	SMB-10-15	SMB-10-24
output	DC voltage	5V	12V	15V	24V
Voltage tolerance	±1%	±1%	±1%	±1%
Rated current	2A	1A	0.7A	0.5A
Current range	0~2A	0~1A	0~0.7A	0~0.5A
Rated power	10W	12W	10.5W	12W
Ripple&noise	80mvp-p	120mvp-p	120mvp-p	120mvp-p
DCvoltage ADJ.range	-9%~+10%	±10%	±10%	±10%
input	Voltage range
frequency	47~63HZ
AC current	0.25A/115VAC,0.15A/230VAC
efficiency	76%	79%	79%	81%
Inrush current	Cold start current 15A/115VAC,30A/230VAC
Leakage current	< 0.25mA/240VAC
protection	overload
protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V
protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature	When temperature of transistor inner node is over 150°C, start over temperature protection
protection type:hiccup mode,auto-recovery after temperature become normal
environment	Working temp,humidity
Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage
Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard
EMC standard	Fit EN55022,CLASSA
