About the Din rail type switching power supply PSU SMPS 240W 24V 48V
The Din rail type switching power supply PSU SMPS 240W 24V 48V is part of the ELEHPD DR Series range. 240W 24V 36V 48V Single group rail type switching power supply model Features: 1) Universal AC input full range 2) Protection: Overload, short circuit, over voltage 3)Cooling by free air convection 4)Can be installed on Din Rail TS-35/7.5 5)Isolation Class II 6)Led indicator for power on 7)100% full load burn-in test 8), high reliability 9) Dimensions: 125x 100 x 125. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Full catalogue description: Din rail type switching power supply PSU SMPS DR 240w 24v 48v 10A 20A
Typical applications
- Motor control centres and pump or fan starters
- Machine building, conveyors, packaging and CNC equipment
- HVAC control panels and building automation
- Water treatment, irrigation and pumping stations
- Panel retrofits replacing electromechanical control gear
How to specify the right DR Series
- Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
- Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
- Confirm the auxiliary contact count needed for the control and indication circuit
- Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)
Specifications
240W 24V 36V 48V Single group rail type switching power supply popular model
Features:
1) Universal AC input full range
2) Protection: Overload, short circuit, over voltage
3)Cooling by free air convection
4)Can be installed on Din Rail TS-35/7.5
5)Isolation Class II
6)Led indicator for power on
7)100% full load burn-in test
8) Competitive price, high reliability

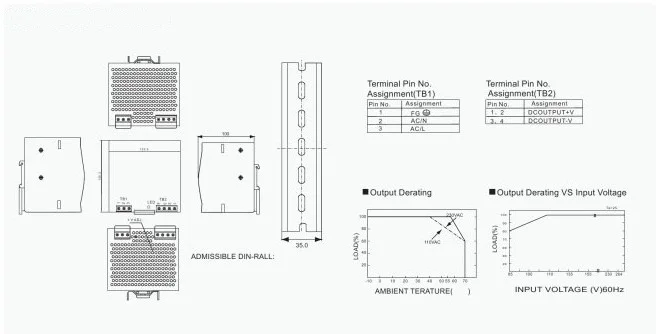

9) Dimensions: 125x 100 x 125.2mm
10) CE, RoHS certified
| Model | | DRP-240-24 | DRP-240-36 | DRP-240-48 |
| Output | DC output Voltage | 24V | 36V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 10A | 6.6A | 5A |
| Related Power | 240w | 240w | 240w |
| Wave&Noise | 80mVp-p | 150mVp-p | 150mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 800ms 40ms 20ms |
| Input | Voltage Range |
| Input Current | 4.5A/115VAC 0.5A/230VAC |
| Efficiency | 80% | 85%% | 85% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 13.8V-16.2V | | 55.2V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size |
| Package | 1.2kg, 16 pcs/20kg
|
Frequently asked questions about the Din rail type switching power supply PSU SMPS 240W 24V 48V
What is the difference between a contactor and a relay?
A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.
How do I calculate the correct contactor size for a motor?
Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.
Do you supply the coil voltage I need?
Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.
Are auxiliary contacts included?
Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
