Din rail power supply DR-30W

About the Din rail power supply DR-30W

The Din rail power supply DR-30W is part of the ELEHPD DR Series range. DIN RAIL TYPE 30W switching power supply Features:·universal AC input ·Small volume,low weight,high efficiency ·Protections:short circuit/over load/over voltage ·cooling by free air convectio ·can be installed on DIN rail: TS-35/7.5or TS-35/15 ·LED indicator for power on ·100% full load burn-in test ·2 Year warranty ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right DR Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

DIN RAIL TYPE 30W switching power supply
Features:·universal AC input

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·cooling by free air convectio

·can be installed on DIN rail: TS-35/7.5or TS-35/15

·LED indicator for power on

·100% full load burn-in test

·2 Year warranty

MODEL	DR-30-5	DR-30-12	DR-30-15	DR-30-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
RATED CURRENT	3A	2A	2A	1.5A
RATED POWER	15W	24W	30W	36W
RIPPLE&NOISE	80mVp-p	120mVp-p	120mVp-p	150mVp-p
VOLTAGE ADJ.RANGE	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
SETUP,RISE TIME	100ms,30ms/230VAC 100ms,30ms/115VAC at full load
HOLD UP TIME(TYP.)	90ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85-264VAC 120-370VDC
FREQUENCY RANGE	47-63HZ
EFFICIENCY(Typ.)	74%	81%	82%	83%
AC CURRENT(Typ.)	0.88A/115VAC 0.48A/230VAC
INRUSH CURRENT	COLD START 15A/115VAC 30A/230VAC
PROTECTION	OVERLOAD	105-160% RATED OUTPUT POWER
Protection type:Hiccup mode,recovers automatically after fault condition
OVER VOLTAGE	5.75V-6.75V	13.8V-16.2V	17.2V-20.25V	27.6V-32.4V
Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENT	WORKING TEMP	-10~+60°C
WORKING HUMIDITY	20-90%RH non-condesing
STORAGE TEMP,HUMIDITY	-20~+85°C,10-95%RH
TEMP.COEFFICIENT	±0.03%°C(0-50°C)
VIBRATION	10-500HZ
SAFETY&EMC	SAFETY STANDARD	CE RoHS
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI CONDUCTION&RADIATION	Design refer to GB4943,UL60950,EN60950
EMC STANDARD	Design refer to GB9254,EN55022 Class A

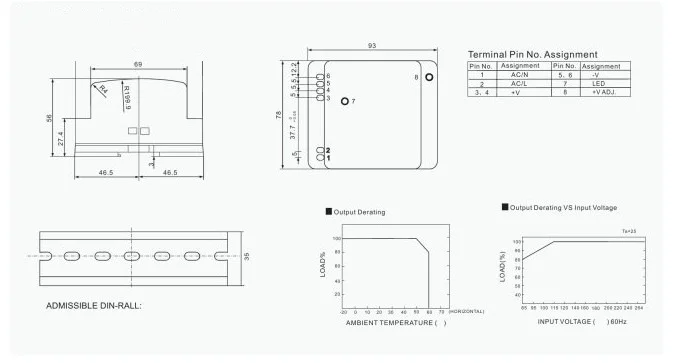

DIMENSION	937856mm
PACKING	0.4kg,50pcs/17kg
