CHUX New Proximity Sensor NPN PNP M8 Sensing

About the CHUX New Proximity Sensor NPN PNP M8 Sensing

The CHUX New Proximity Sensor NPN PNP M8 Sensing is part of the ELEHPD New Sensor range. Advance: 1: Waterproof IP up to IP68 2: 360 degree LED indicator 3: Thicker Copper conductor 4: Built-in surge protection, power reverse protection, Short-circuit protection and over-current protection 5: Higher frequency Specificate: NPN: refers to the sensor signal output level signal: low (negative), common positive PNP: only sensor signal line output level signal: high (positive), total negative DC VDC: When th ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: CHUX New Proximity Sensor NPN PNP M8 1mm 2mm Sensing Detect Distance High Frequency Metal Inductive Proximity Switch

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right New Sensor

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

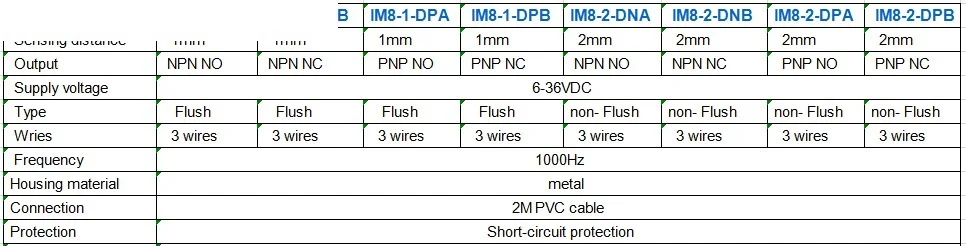

CHUX New Proximity Sensor NPN PNP M8 1mm 2mm Sensing Detect Distance High Frequency Metal Inductive Proximity Switch

Advance:

1: Waterproof IP up to IP68

2: 360 degree LED indicator

3: Thicker Copper conductor

4: Built-in surge protection , power reverse protection,

Short-circuit protection and over-current protection

5: Higher frequency

Specificate:

NPN: refers to the sensor signal output level signal: low (negative), common positive

PNP: only sensor signal line output level signal: high (positive), total negative

DC VDC: When the sensor indicates that the power supply for the VDC, it is strongly recommended to use switching power supply.

AC VAC: When the sensor is marked for VAC, it can be used within the indicated AC voltage range

Normally open (NO): refers to when the switch is detected when the output of a signal, no detection is not output

Normally closed (NC): refers to when the switch is not detected when the output is not detected when not output a signal
