YSR020 Duplex Receptacle

About the YSR020 Duplex Receptacle

The YSR020 Duplex Receptacle is part of the ELEHPD GFCI range. 20Amp, 125Volt, 2P, 3W, With Ears Duplex receptacle, Straight Blade, Residential, Grounding,All screws backed Out contractor Pack, quick-wire Push- In & Side Wired, Steel Strap, color is optional. Product Features: Ground: U-Grounding Screw Feature: All Screws Backed Out Contractor Pack Amperage: 15Amp Voltage: 120V AC NEMA: 5-20R & 5-20P Combination Pole: 2 Wire: 3 Termination: Quick-wire Push-In & Side Face Material: Thermoplastic Body Material: Thermoplastic Strap material: Steel Standard Color: White, Ivory, Black, Almond, Grey, Brown Standard & Certification; UL/CUL, E311193 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right GFCI

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

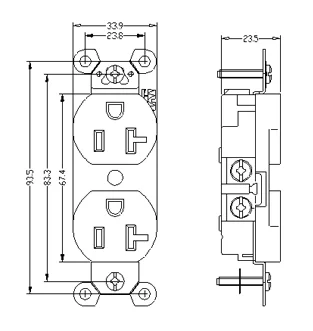

Product Name: Duplex Receptacle

Item NO.:YSR020

20Amp, 125Volt, 2P, 3W, With Ears Duplex receptacle, Straight Blade, Residential, Grounding,All screws backed Out contractor Pack, quick-wire Push- In & Side Wired, Steel Strap, color is optional.
Product Features:
Ground: U-Grounding Screw
Feature: All Screws Backed Out Contractor Pack
Amperage: 15Amp
Voltage: 120V AC
NEMA: 5-20R & 5-20P Combination
Pole: 2
Wire: 3
Termination: Quick-wire Push-In & Side
Face Material: Thermoplastic
Body Material: Thermoplastic
Strap material: Steel
Standard Color: White, Ivory, Black, Almond, Grey, Brown
Standard & Certification; UL/CUL, E311193

* UL&CUL No.E311193

* Meet UL498 Standard
* Wraparound design is molded of highimpact, chemical-resistantnylon
* Heavy-duty wraparound steel yoke
* Terminal screws: brass combination Phillips / slotted / Robert-sonbinding head accepts up to #10 wire
* Easily accessible break-off tab for two-circuit wiring
* Self-grounding strap for quick installation
* Back wiring: eight wiring pockets for convenient feed-thru wiring, clamp-type terminals accepts up to #10 wire
