GFCI

Product Name: Ground-Fault Circuit Interrupters GFCI


SPECIFICATIONS
      *Amperage: 15A/20A
      *Supply Voltage: 125VAC/60HZ
      *Voltage Range: 102-132VAC
      *Trip Level: 4-6mA
      *Trip Time: 0.025seconds
      *Max Humidity: 95%
      *Operation Temperature: -35℃ to +66℃
FEATURES AND BENEFITS
      *Meets new UL 2006 requirements,UL File No.E256800
      *UL Standard 943 Class A(GFCI) and 498(Receptacle)
      *2-pole,3-wire grounding duplex receptacle
      *Impact-resistant thermoplastic cover and body
      *More resistance to electrical noise and to moisturecorrosion

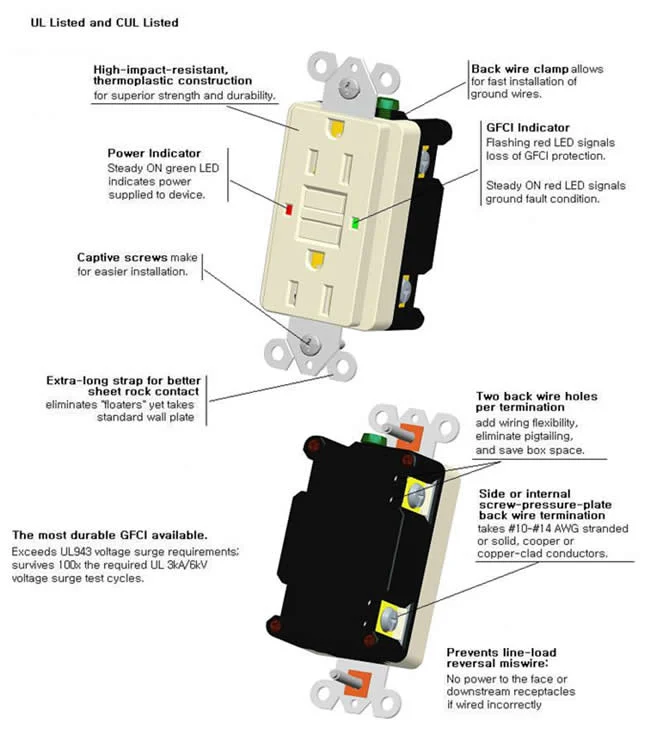

      *Versions available with matching TEST and RESET buttons and traditional black and red models
      *Immediate indication(RED LED light) if GFCI has lost the ability to protect
APPLICATIONS
      *Kitchen, Bathroom, Pool, Hotels and resorts, Retail locations, Business offices, Apartments and condos.
