About the Reed sensor magnetic switch sensor SR-401
The Reed sensor magnetic switch sensor SR-401 is part of the ELEHPD Magnetic Sensor range. Reed sensor magnetic switch SR-401 Reed sensor also called magnetic switch,reed sensor is applicable for position determination of pneumatic and/or hydraulic cylinder and piston pump.lt also can be usedslinit switch. When the magnetic object approaches, the reed closes and sends out switch signal through magnificatio. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Motor control centres and pump or fan starters
- Machine building, conveyors, packaging and CNC equipment
- HVAC control panels and building automation
- Water treatment, irrigation and pumping stations
- Panel retrofits replacing electromechanical control gear
How to specify the right Magnetic Sensor
- Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
- Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
- Confirm the auxiliary contact count needed for the control and indication circuit
- Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)
Specifications

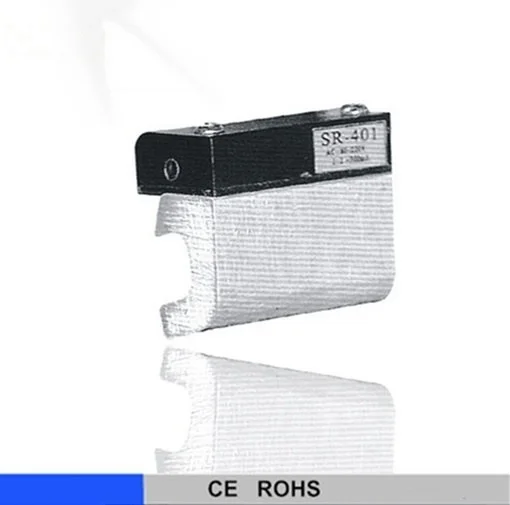

reed sensor magnetic switch SR-401
Reed sensor also called magnetic switch,reed sensor is applicable for position determination of pneumatic and/or hydraulic cylinder and piston pump.lt
also can be usedslinit switch. When the magnetic object approaches, the reed closes and sends out switch signal through magnificatio.
Compared with inductive sensor, it h tlie following strongpoints: can be installed in metal colsely and side by side and detect through met
al object. Its detection distance subjects to the intensity of magnetic field of detected object. Reed sensor is not applicable in the occasi
on of sevee vibration.
Model :SR-401
Size: 40 *32 *20
