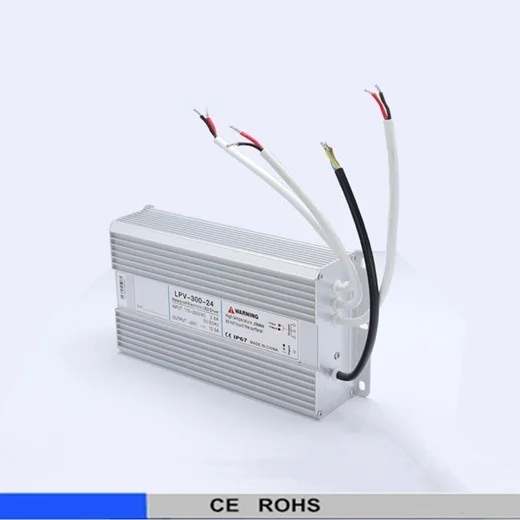

| MODEL | LPV-300-12 / 24 48V |
| OUTPUT | DC VOLTAGE RANGE | 12V 24V 48V |
| RATED CURRENT | 25A 12.5A 6.25A |
| CURRENT RANGE | 0~25A 0-12.5A 0-6.25A |
| RATED POWER | 300W 300W 300W |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p 200mVp-p 200mVp-p |
| VOLTAGE TOLERANCE Note.3 | ±5.0% |
| LINE REGULATION | ±1.0% |
| LOAD REGULATION | ±2.0% |
| SETUP, RISE TIME | 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 20ms/230VAC 15ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 170~264VAC 235~373VDC |
| FREQUENCY RANGE | 47~63HZ |
| EFFICIENCY (Typ.) | 83% 85% 87% |
| AC CURRENT | 0.2A/230VAC 0.35A/115VAC |
| INRUSH CURRENT (max.) | COLD START 35A/115VAC 70A/230VAC |
| LEAKAGE CURRENT | 1mA/240VAC |
| PROTECTION | OVER LOAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 27.6 ~ 32.4V |
| Protection type: Shut off o/p voltage, clamping by zener diode |
| ENVIRONMENT | WORKING TEMP | -10~+60°C (Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20~90%RH non-condensing |
| STORAGE TEMP., HUMIDITY | -10~+60°C 20~90%RH |
| TEMP. COEFFICIENT | ±0.03%(0~50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08 approved ; Design refer to TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class A, EN61000-3-3 |
| EMC IMMUNITY | Compliance to EN61547, EN61000-4-2,3,4,5,6,8,11, light industry level(surge 2KV), criteria A |
| QTHERS | | |
| | |
| PACKING | 2.45Kg; 10pcs/23KG |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation.
|
