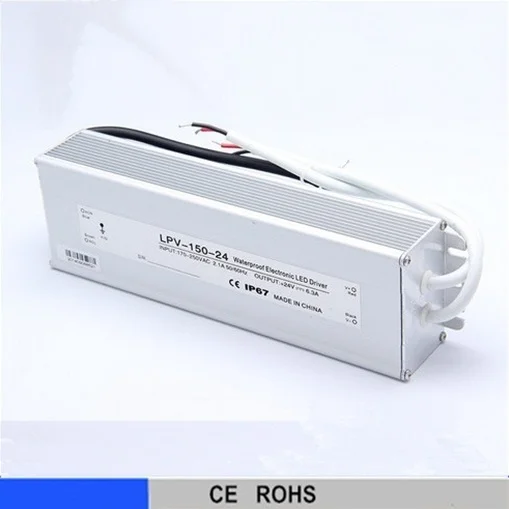

About the LPV-150W LED driver LED water-proof switching power
The LPV-150W LED driver LED water-proof switching power is part of the ELEHPD LED Waterproof&rain Proof Series range. LED driver LED water-proof switching power supply 150W 12v 24v Features: 1.Waterproof level:IP67 2.100% full load burn- in testing 3.1 years quality assurance 4.CE ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Full catalogue description: LED driver LED water-proof switching power supply 150W 12v 24v LPV-150W
Typical applications
- Commercial interiors: offices, retail, showrooms and hospitality
- Industrial high-bay lighting for warehouses and workshops
- Outdoor area, street and roadway lighting
- Warehouse, logistics and cold-store facilities
- Project lighting specified through M&E contractors
How to specify the right LED Waterproof&rain Proof Series
- Work from the required lux level at the task plane, then the mounting height
- Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
- Check the IP and IK rating for the installation environment
- Confirm colour temperature and CRI with the interior designer or specifier
Specifications
LED driver LED water-proof switching power supply 150W 12v 24v
Features:
1.Waterproof level :IP67
2.100% full load burn- in testing
3.1 years quality assurance
4.CE
| LPV-150W LED driver water-proof power supply |
| Model NO. | OUTPUT | Tolerance | range | efficiency |
| LPV-150-12 | 12V, 0-12.5A | ± 1% | 150mV | 85% |
| LPV-150-15 | 15V, 0-10.0A | ± 1% | 150mV | 86% |
| LPV-150-24 | 24V, 0-6.25A | ± 1% | 150mV | 87% |
| LPV-150-48 | 48V, 0-3.1A | ± 1% | 150mV | 88% |
| AC input voltage range | 170-260vac 47-63hz |
| input current | 1.6A/230V |
| AC inrush current | Cold-start current 60A/230V |
| Leakage current | < 3.5mA/240VAC |
| DC adjustable range | ± 10% rated output voltage |
| Over load protection | 105-150%cut down output, auto-recovery |
| Water-proof degree | IP67 |
| set up, rise, hold up time: | 200ms, 50ms 20ms |
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes |
| working temperature | -20~+60° C, 20-90%RH |
| weight/packing: | 1.37kg |
| Size | 240*68*43MM |
| certificate | CE ISO9001 ROHS |
| Warranty year | 1 year |
| Protections | Short circuit / Over load / Over voltage |
Frequently asked questions about the LPV-150W LED driver LED water-proof switching power
What colour temperature should I specify?
4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.
What IP rating do I need for outdoor use?
IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.
Can the fixtures be dimmed or sensor-controlled?
Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.
Do you supply photometric data for lighting design?
IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
