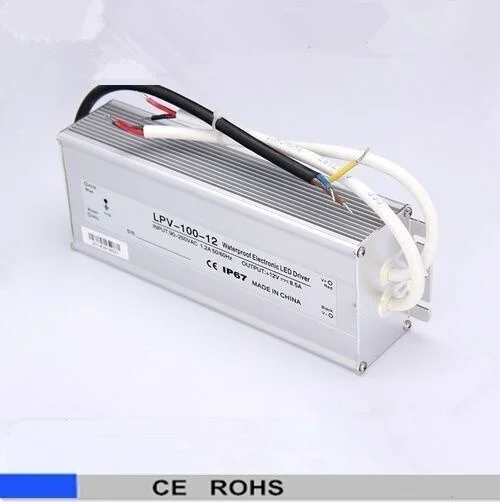

About the LED driver LED water-proof switching power 100W 12V 24V
The LED driver LED water-proof switching power 100W 12V 24V is part of the ELEHPD LED Waterproof&rain Proof Series range. Features: 1) High efficiency, low operation temperature 2) Aluminum plastic shell 3) 100% full load burn-in test 4)CE, RoHS ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Full catalogue description: LED driver LED water-proof switching power supply 100W 12v 24v
Typical applications
- Commercial interiors: offices, retail, showrooms and hospitality
- Industrial high-bay lighting for warehouses and workshops
- Outdoor area, street and roadway lighting
- Warehouse, logistics and cold-store facilities
- Project lighting specified through M&E contractors
How to specify the right LED Waterproof&rain Proof Series
- Work from the required lux level at the task plane, then the mounting height
- Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
- Check the IP and IK rating for the installation environment
- Confirm colour temperature and CRI with the interior designer or specifier
Specifications
LED driver LED water-proof switching power supply 100W 12v 24v
Features:
1) High efficiency, low operation temperature
2) Aluminum plastic shell
3) 100% full load burn-in test
4)CE, RoHS
| LPV-100W LED driver water-proof power supply |
| Model NO. | OUTPUT | Tolerance | range | efficiency |
| LPV-100-12 | 12V,0-8.5A | ±1% | 100mV | 80% |
| LPV-100-15 | 15V,0-6.6A | ±1% | 100mV | 82% |
| LPV-100-24 | 24V,0-4.2A | ±1% | 100mV | 84% |
| LPV-100-48 | 48V,0-2.1A | ±1% | 100mV | 86% |
| AC input voltage range | 170-260vac 47-63hz |
| input current | 1.2A/230V |
| AC inrush current | Cold-start current36A/230V |
| Leakage current | <1mA/240VAC |
| DC adjustable range | ±10% rated output voltage |
| Over load protection | 105-150%cut down output, auto-recovery |
| Water-proof degree | IP67 |
| set up, rise,hold up time: | 200ms,100ms 30ms |
| withstand voltage: | I/P-O/P:1.5KVAC 1Minutes
I/P-FG:1.5KVAC 1MInutes
O/P-FG:0.5VAC 1minutes |
| working temperature | -20~+60°C,20-90%RH |
| weight/packing: | 1.37kg |
| Size | 178*68*43MM |
| certificate | CE ISO9001 ROHS |
| Warranty year | 1 year |
| Protections | Short circuit / Over load / Over voltage |
Frequently asked questions about the LED driver LED water-proof switching power 100W 12V 24V
What colour temperature should I specify?
4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.
What IP rating do I need for outdoor use?
IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.
Can the fixtures be dimmed or sensor-controlled?
Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.
Do you supply photometric data for lighting design?
IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
