EI30/18-2.3VA

EI30/18-2.3VA Encapsulated Transformer Safety transformer/Short-circuit-proof Vacuum Filled Split Bobbin Design Temperature Class ta 70℃/B…

  • Category: Electrical Items › PCB Transformer
  • Model: 3368
  • Brand / OEM: ELEHPD — OEM branding available
  • Export: Worldwide, FOB Ningbo / Shanghai
Request a quotation for this PCB Transformer

About the EI30/18-2.3VA

The EI30/18-2.3VA is part of the ELEHPD PCB Transformer range. EI30/18-2.3VA Encapsulated Transformer Safety transformer/Short-circuit-proof Vacuum Filled Split Bobbin Design Temperature Class ta 70℃/B Dielectric Strength 4500Vrms Weight：110 grams Accrding to： EI30/18-2.3VA PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No EI3018-E-0230-060-S 230v~ 6 384.0 1+5/7+9 10.0 1 EI3018-E-0230-090-S 230v~ 9 256.0 1+5/7+9 14.0 1 EI3018-E-0 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

How to specify the right PCB Transformer

  1. Size the output current with at least 20-30 % headroom over the load
  2. Check the input range covers the local supply, including brown-outs
  3. Confirm the enclosure and cooling method for the panel temperature
  4. Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

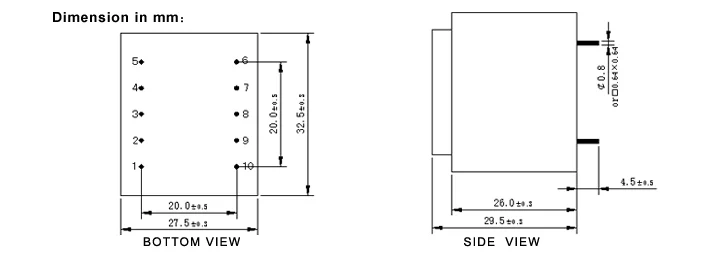

EI30/18-2.3VA Encapsulated Transformer
Safety transformer/Short-circuit-proof
Vacuum Filled
Split Bobbin Design
Temperature Class ta 70℃/B
Dielectric Strength 4500Vrms
Weight：110 grams
　Accrding to：

　EI30/18-2.3VA

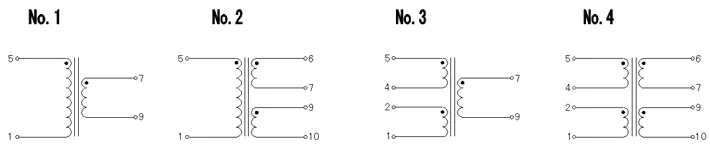

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI3018-E-0230-060-S 230v~ 6 384.0 1+5/7+9 10.0 1
EI3018-E-0230-090-S 230v~ 9 256.0 1+5/7+9 14.0 1
EI3018-E-0230-120-S 230v~ 12 192.0 1+5/7+9 19.0 1
EI3018-E-0230-150-S 230v~ 15 154.0 1+5/7+9 24.0 1
EI3018-E-0230-180-S 230v~ 18 128.0 1+5/7+9 28.0 1
EI3018-E-0230-240-S 230v~ 24 96.0 1+5/7+9 35.0 1
EI3018-E-0230-060-D 230v~ 2×6 2×192.0 1+5/6+7-9+10 2×10.0 2
EI3018-E-0230-075-D 230v~ 2×7.5 2×153.0 1+5/6+7-9+10 2×13.0 2
EI3018-E-0230-090-D 230v~ 2×9 2×128.0 1+5/6+7-9+10 2×14.0 2
EI3018-E-0230-120-D 230v~ 2×12 2×96.0 1+5/6+7-9+10 2×18.0 2
EI3018-E-0230-150-D 230v~ 2×15 2×77.0 1+5/6+7-9+10 2×24.5 2
EI3018-E-0230-180-D 230v~ 2×18 2×64.0 1+5/6+7-9+10 2×29.0 2
EI3018-E-0230-240-D 230v~ 2×24 2×48.0 1+5/6+7-9+10 2×35.8 2
EI3018-U-0230-060-S 115v~ 6 384.0 1+5/7+9 10.0 1
EI3018-U-0230-090-S 115v~ 9 256.0 1+5/7+9 14.0 1
EI3018-U-0230-120-S 115v~ 12 192.0 1+5/7+9 19.0 1
EI3018-U-0230-150-S 115v~ 15 154.0 1+5/7+9 24.0 1
EI3018-U-0230-180-S 115v~ 18 128.0 1+5/7+9 28.0 1
EI3018-U-0230-240-S 115v~ 24 96.0 1+5/7+9 35.0 1
EI3018-U-0230-060-D 115v~ 2×6 2×192.0 1+5/6+7-9+10 2×21.0 2
EI3018-U-0230-075-D 115v~ 2×7.5 2×153.0 1+5/6+7-9+10 2×13.0 2
EI3018-U-0230-090-D 115v~ 2×9 2×128.0 1+5/6+7-9+10 2×14.0 2
EI3018-U-0230-120-D 115v~ 2×12 2×96.0 1+5/6+7-9+10 2×18.0 2
EI3018-U-0230-150-D 115v~ 2×15 2×77.0 1+5/6+7-9+10 2×24.5 2
EI3018-U-0230-180-D 115v~ 2×18 2×64.0 1+5/6+7-9+10 2×29.0 2
EI3018-U-0230-240-D 115v~ 2×24 2×48.0 1+5/6+7-9+10 2×35.8 2
EI3018-U2-0230-060-S 2*115v~ 6 384.0 1+2-4+5/7+9 10.0 3
EI3018-U2-0230-090-S 2*115v~ 9 256.0 1+2-4+5/7+9 14.0 3
EI3018-U2-0230-120-S 2*115v~ 12 192.0 1+2-4+5/7+9 19.0 3
EI3018-U2-0230-150-S 2*115v~ 15 154.0 1+2-4+5/7+9 24.0 3
EI3018-U2-0230-180-S 2*115v~ 18 128.0 1+2-4+5/7+9 28.0 3
EI3018-U2-0230-240-S 2*115v~ 24 96.0 1+2-4+5/7+9 35.0 3
EI3018-U2-0230-060-D 2*115v~ 2×6 2×192.0 1+2-4+5/6+7-9+10 2×10.0 4
EI3018-U2-0230-090-D 2*115v~ 2×9 2×128.0 1+2-4+5/6+7-9+10 2×14.0 4
EI3018-U2-0230-120-D 2*115v~ 2×12 2×96.0 1+2-4+5/6+7-9+10 2×18.0 4
EI3018-U2-0230-150-D 2*115v~ 2×15 2×77.0 1+2-4+5/6+7-9+10 2×24.5 4
EI3018-U2-0230-180-D 2*115v~ 2×18 2×64.0 1+2-4+5/6+7-9+10 2×29.0 4
EI3018-U2-0230-240-D 2*115v~ 2×24 2×48.0 1+2-4+5/6+7-9+10 2×35.8 4
