About the EI20/6.1-0.35VA

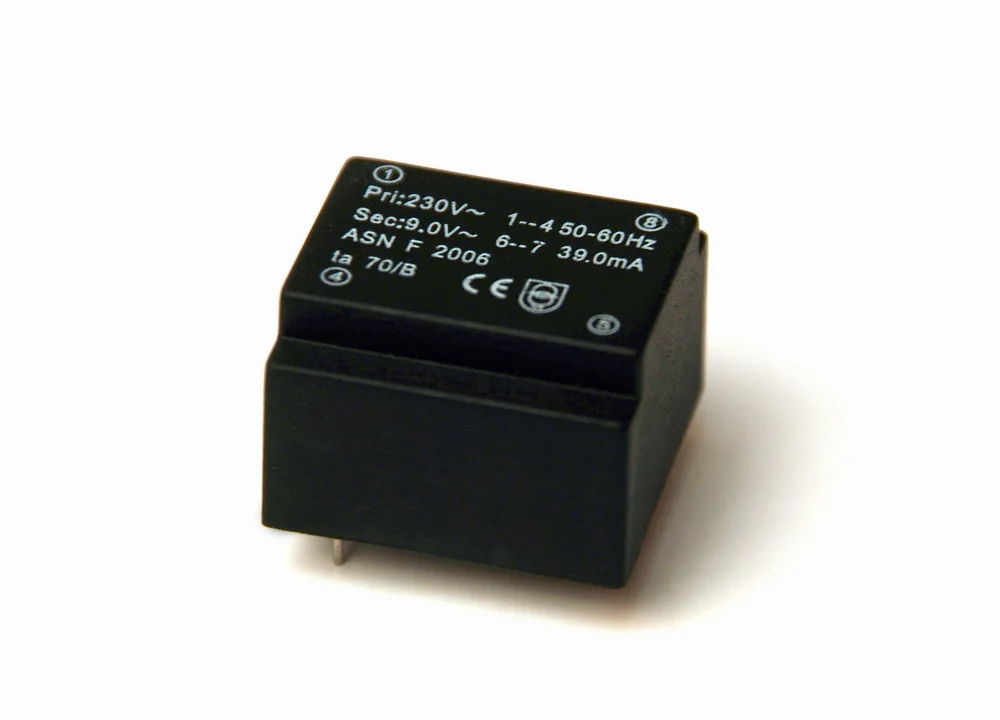

The EI20/6.1-0.35VA is part of the ELEHPD PCB Transformer range. EI20/6.1-0.35VA Encapsulated Transformer Safety transformer/Short-circuit-proof Vacuum Filled Casting Split Bobbin Design Winding emperature Class ta 70℃/B Dielectric Strength 4500Vrms Weight：25 grams Accrding to： EI20/6.1-0.35VA PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No EI2006-E-0035-040-S 230v~ 4 87.5 1+4/6+7 6.5 1 EI2006-E-0035-060-S 230v~ 6 58.3 1+4 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Industrial control panels and PLC power rails
- LED drivers, signage and display power
- Battery charging and DC backup systems
- Motor drives, welding sets and rectifier assemblies
- Instrumentation and test equipment
How to specify the right PCB Transformer
- Size the output current with at least 20-30 % headroom over the load
- Check the input range covers the local supply, including brown-outs
- Confirm the enclosure and cooling method for the panel temperature
- Verify the protection set: over-current, over-voltage, thermal and short circuit

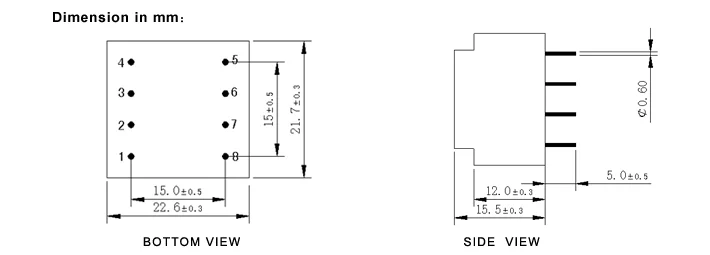

Specifications
| EI20/6.1-0.35VA Encapsulated Transformer |
Safety transformer/Short-circuit-proof
Vacuum Filled Casting
Split Bobbin Design Winding
emperature Class ta 70℃/B
Dielectric Strength 4500Vrms
Weight：25 grams
|
| Accrding to： |
|
| |
| |
| PART NO |
Primary[V] |
Secondary[V] |
Current[mA] |
Pin |
No-Load Voltage[V] |

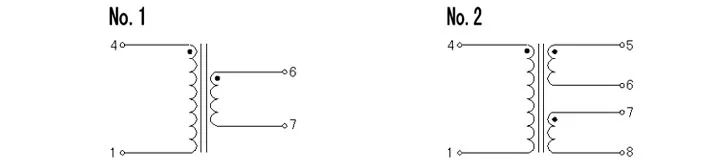

Schematic No |
| EI2006-E-0035-040-S |
230v~ |
4 |
87.5 |
1+4/6+7 |
6.5 |
1 |
| EI2006-E-0035-060-S |
230v~ |
6 |
58.3 |
1+4/6+7 |
9.7 |
1 |
| EI2006-E-0035-090-S |
230v~ |
9 |
38.8 |
1+4/6+7 |
14.7 |
1 |
| EI2006-E-0035-120-S |
230v~ |
12 |
29.1 |
1+4/6+7 |
20.0 |
1 |
| EI2006-E-0035-150-S |
230v~ |
15 |
23.3 |
1+4/6+7 |
26.1 |
1 |
| EI2006-E-0035-180-S |
230v~ |
18 |
19.4 |
1+4/6+7 |
31.3 |
1 |
| EI2006-E-0035-240-S |
230v~ |
24 |
14.5 |
1+4/6+7 |
40.3 |
1 |
| EI2006-E-0035-060-D |
230v~ |
2×6 |
2×29.1 |
1+4/5+6-7+8 |
2×10.5 |
2 |
| EI2006-E-0035-090-D |
230v~ |
2×9 |
2×19.4 |
1+4/5+6-7+8 |
2×15.7 |
2 |
| EI2006-E-0035-120-D |
230v~ |
2×12 |
2×14.5 |
1+4/5+6-7+8 |
2×20.2 |
2 |
| EI2006-E-0035-150-D |
230v~ |
2×15 |
2×11.6 |
1+4/5+6-7+8 |
2×29.8 |
2 |
| EI2006-E-0035-180-D |
230v~ |
2×18 |
2×9.7 |
1+4/5+6-7+8 |
2×35.7 |
2 |
| EI2006-E-0035-240-D |
230v~ |
2×24 |
2×7.2 |
1+4/5+6-7+8 |
2×40.6 |
2 |
| EI2006-U-0035-040-S |
115v~ |
4 |
87.5 |
1+4/6+7 |
6.5 |
1 |
| EI2006-U-0035-060-S |
115v~ |
6 |
58.3 |
1+4/6+7 |
9.7 |
1 |
| EI2006-U-0035-090-S |
115v~ |
9 |
38.8 |
1+4/6+7 |
14.7 |
1 |
| EI2006-U-0035-120-S |
115v~ |
12 |
29.1 |
1+4/6+7 |
20.0 |
1 |
| EI2006-U-0035-150-S |
115v~ |
15 |
23.3 |
1+4/6+7 |
26.1 |
1 |
| EI2006-U-0035-180-S |
115v~ |
18 |
19.4 |
1+4/6+7 |
31.3 |
1 |
| EI2006-U-0035-240-S |
115v~ |
24 |
14.5 |
1+4/6+7 |
40.3 |
1 |
| EI2006-U-0035-060-D |
115v~ |
2×6 |
2×29.1 |
1+4/5+6-7+8 |
2×10.5 |
2 |
| EI2006-U-0035-090-D |
115v~ |
2×9 |
2×19.4 |
1+4/5+6-7+8 |
2×15.7 |
2 |
| EI2006-U-0035-120-D |
115v~ |
2×12 |
2×14.5 |
1+4/5+6-7+8 |
2×20.2 |
2 |
| EI2006-U-0035-150-D |
115v~ |
2×15 |
2×11.6 |
1+4/5+6-7+8 |
2×29.8 |
2 |
| EI2006-U-0035-180-D |
115v~ |
2×18 |
2×9.7 |
1+4/5+6-7+8 |
2×35.7 |
2 |
| EI2006-U-0035-240-D |
115v~ |
2×24 |
2×7.2 |
1+4/5+6-7+8 |
2×40.6 |
2 | |
|
|
