About the Double ended Metal Halide Lamp
The Double ended Metal Halide Lamp is part of the ELEHPD Metal Halide Lamp range. Characteristic:High in luminous efficiency,long in service life,fine in photochromism.Colour index Ra(CRI)=65.Colour temperature including 3K/4K/5.5K/6K/10L/20K. Application:Suitable for lighting the places of stadium,exhibition centre,large size department store,play field,street and public square. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Commercial interiors: offices, retail, showrooms and hospitality
- Industrial high-bay lighting for warehouses and workshops
- Outdoor area, street and roadway lighting
- Warehouse, logistics and cold-store facilities
- Project lighting specified through M&E contractors
How to specify the right Metal Halide Lamp
- Work from the required lux level at the task plane, then the mounting height
- Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
- Check the IP and IK rating for the installation environment
- Confirm colour temperature and CRI with the interior designer or specifier
Specifications
| Double ended metal halide lamp |
|
Characteristic:High in luminous efficiency,long in service life,fine in photochromism.Colour index Ra(CRI)=65.Colour temperature including 3K/4K/5.5K/6K/10L/20K.
Application:Suitable for lighting the places of stadium,exhibition centre,large size department store,play field,street and public square. |
|
Type |
Wattage
(w) |
Operating Voltage(v) |
Operating Current(a) |
Luminous Flux(Im) |
Average Life(h) |
Base |

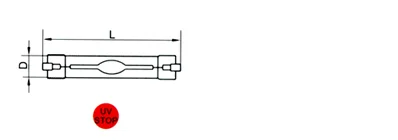

Max Diameter
(mm) |
Max Length
(mm) |
Burning Position |
Case qty |
Carton Meas(cm) |
G/N Weight
(KGS) |
|
JLS/70 |
70 |
80±10 |
0.90 |
5600 |
10000 |
R7s |
21 |
120 |
Horizontal±45 |
40 |
38×31×41 |
3.5/1.2 |
|
JLS/100 |
100 |
95±10 |
1.10 |
8000 |
10000 |
R7s |
23 |
138 |
|
40 |
38×31×41 |
3.5/1.2 |
|
JLS-T150 |
150 |
100±10 |
1.80 |
11250 |
10000 |
R7s |
23 |
138 |
Horizontal±45 |
40 |
38×31×41 |
3.5/1.2 | |
Frequently asked questions about the Double ended Metal Halide Lamp
What colour temperature should I specify?
4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.
What IP rating do I need for outdoor use?
IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.
Can the fixtures be dimmed or sensor-controlled?
Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.
Do you supply photometric data for lighting design?
IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
