CX-M15-3 float switch water level controller

CX-M15-3 float switch water level controller from the ELEHPD FLOAT SWITCH range.

Category: Industrial Control › FLOAT SWITCH
Model: chance_140
Brand / OEM: ELEHPD — OEM branding available
Export: Worldwide, FOB Ningbo / Shanghai

Request a quotation for this FLOAT SWITCH

About the CX-M15-3 float switch water level controller

The CX-M15-3 float switch water level controller is part of the ELEHPD FLOAT SWITCH range. CX-M15-3 float switch water level controller from the ELEHPD FLOAT SWITCH range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Sump and sewage pits for automatic drainage pump control
Water tanks, cisterns and storage reservoirs for fill and overflow control
Boreholes, wells and irrigation reservoirs
OEM water-treatment, dosing and cooling-tower packages
Appliance and boiler level control where a simple on/off point is enough

How to specify the right FLOAT SWITCH

Match the contact rating to the load: direct switching for small pumps, a contactor for larger or three-phase motors
Pick the contact form and logic to the duty: NO to fill, NC to empty, so the pump fails safe
Choose the mounting: cable pendant for sumps, side-mount for a fixed point, magnetic/rod for narrow tanks
Confirm the float material and cable jacket against the medium and temperature (PP for water, oil-resistant for pits)

Specifications

CX-M15-3 float switch water level controller

CX-M15-3 float switch water level controller

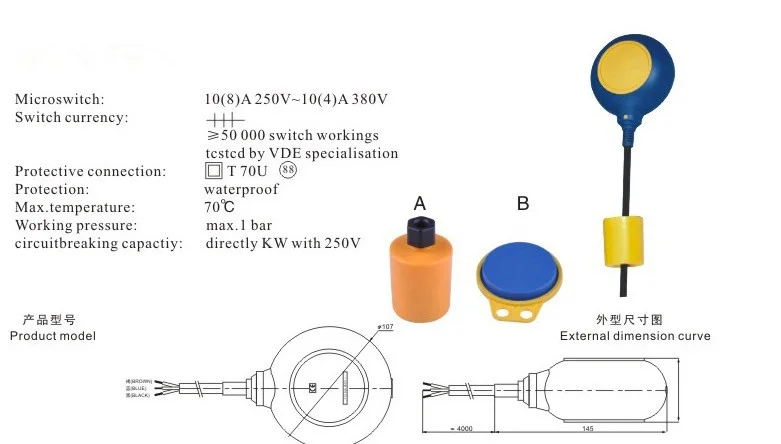

Technical Data:

Float Regulator	Liquid Controller /float switch
Rated voltage	250V(380V)
Rated Frequency	50Hz/60Hz
Rated current	10 (4)A/16(4)A/16(8)A
Working temperature	0 degee to 70 degree
Mechanical endurance	≥100.000 times
Electric endurance	≥ 50.000 times
Protection grade	IP68
cable length	2m.3m 4m.5m.10m .15m as customer request
Switch currency	+++ ≥50 000switch workings tested by VDE specialisation
Protective connection	T 70U
Protection	waterproof
Working pressure	max.1bar
Circuit breaking capacity	Directly KW with 250V
Float	Polypropylene
Cable	polypropylene Jacket
Counter Weight	Polypropylene Sealed Housing
Cable Material	PVC (3x0. 5mm2, 3x0.75mm2, 3x1.0mm2)

Frequently asked questions about the CX-M15-3 float switch water level controller

Can a float switch run a pump motor directly?

Only when the contact rating comfortably exceeds the motor inrush. A small single-phase pump up to the contact rating (for example 10(8) A at 250 V AC) can be switched directly; above that, or on three-phase motors, use the float as a signal into a magnetic contactor so the contacts only carry the coil current.

What cable length should I order?

Base it on tank depth plus the hysteresis you need between the fill and empty points, then add about 0.5-1 m of slack for the tie-off. Remember a longer cable lowers the trip point, so order a standard length (2, 3, 5, 10 or 15 m) rather than cutting to an odd size.

Float switch or electrode switch?

Use a float switch for non-conductive liquids, sludge and single on/off points, and where the switch must drive the pump directly. Use an electrode (conductivity) switch for clean conductive water and where several level points are needed from one controller.

Which IP rating do I need?

At least IP68 for a float that is continuously submerged in a sump or tank. Check the temperature range covers both the liquid and any steam or frost above it, and choose an oil- and chemical-resistant cable jacket for sewage pits.
