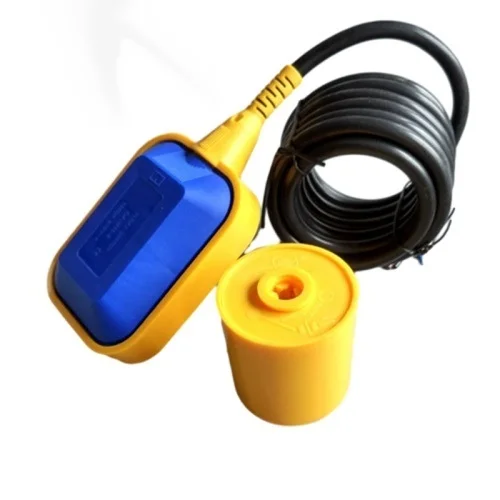

CX-M15-2 cable type float switch square type blue

About the CX-M15-2 cable type float switch square type blue

The CX-M15-2 cable type float switch square type blue is part of the ELEHPD FLOAT SWITCH range. Float Switch water level controller CX-M15-2 1.Cable Float Switch uses one-step shaping injection molding with substantial structure, price and long lifetime. 2.It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block. 3.Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: cable type float switch square type blue yellow color water level control for industry pump 2m 3m 5m 10m 15m CX-M15-2

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right FLOAT SWITCH

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

Float Switch water level controller CX-M15-2

1.Cable Float Switch uses one-step shaping injection molding with substantial structure, cheap price and long lifetime.

2.It has very good control effect for long distance, multiple level control, submerged pump or liquid with grain or block.

3.Certainly it is also useful for normal liquid. It uses Micro Switch to make connection output. Connection point capacity 10A/250VAC can start the motor equipment directly.

4.It can be regulated freely and easy to operate, convenient to install, safe and reliable, without maintenance, non-toxic and environment friendly.

5.It can resist sewage so that widely used in pool in resident, factories and mines ect., and ponds, barrel, manger and pot with oil, acid and alkali as well as the vessel with high viscosity and suspended substance.

Technical Data:

Float Regulator Liquid Controller /float switch

Rated voltage 250V(380V)

Rated Frequency 50Hz/60Hz

Rated current 10 (4)A/16(4)A/16(8)A

Working temperature 0 degee to 70 degree

Mechanical endurance ≥100.000 times

Electric endurance ≥ 50.000 times

Protection grade IP68

cable length 2m.3m 4m.5m.10m .15m as customer request

Switch currency +++ ≥50 000switch workings tested by VDE specialisation

Protective connection T 70U

Protection waterproof

Working pressure max.1bar

Circuit breaking capacity Directly KW with 250V

Float Polypropylene

Cable polypropylene Jacket

Counter Weight Polypropylene Sealed Housing

Cable Material PVC (3x0. 5mm2, 3x0.75mm2, 3x1.0mm2)

Frequently asked questions about the CX-M15-2 cable type float switch square type blue

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.

Related FLOAT SWITCH models

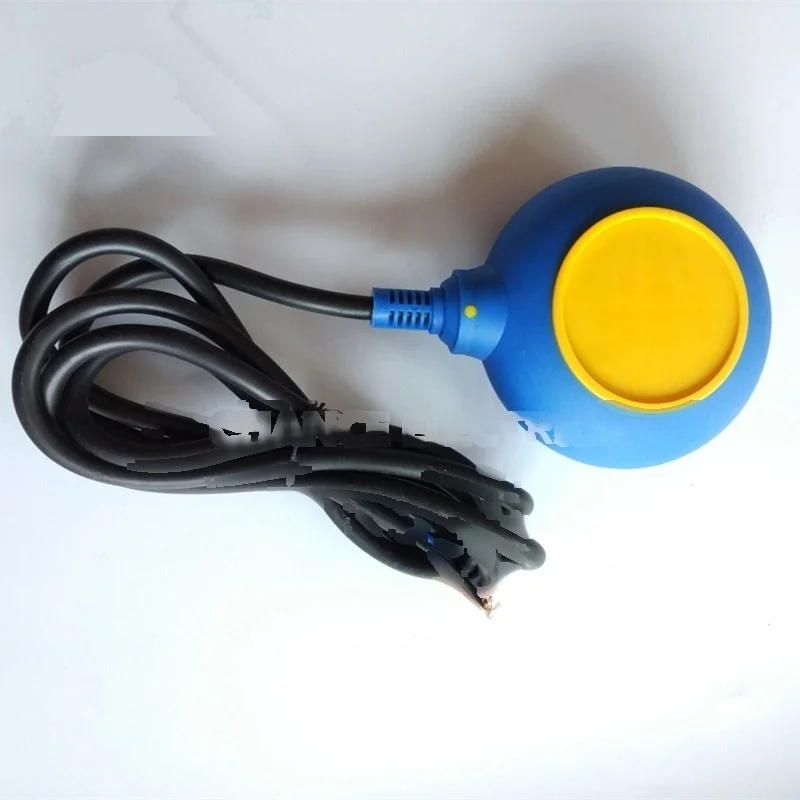

CX-M15-3 float switch water level controller

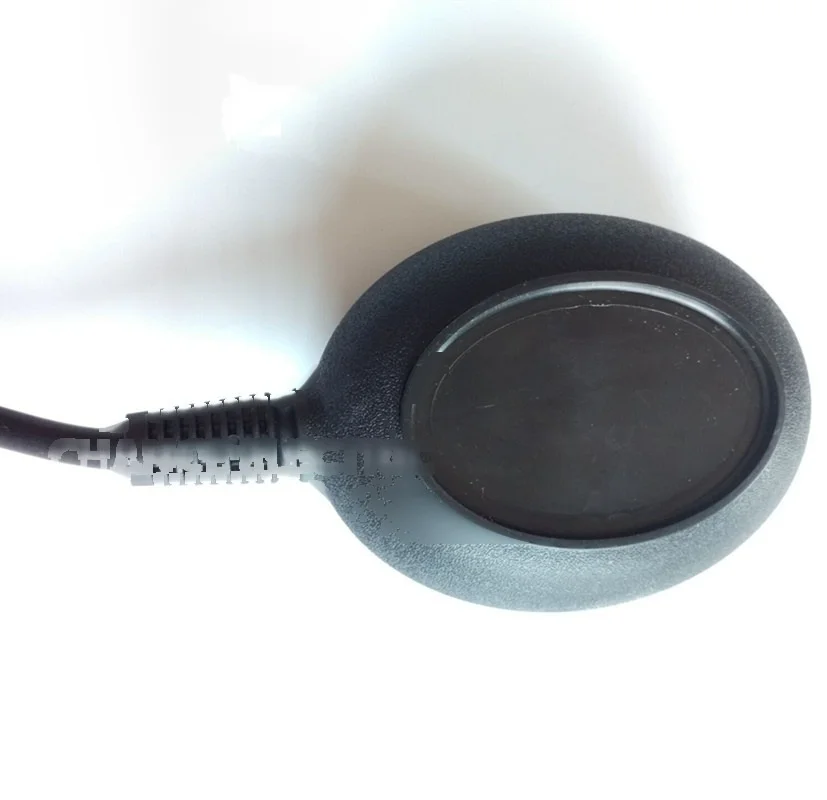

CX-M15-4 float switch water level controller

CX-M15-6 float switch water level controller

CX-M15-7 float switch water level controller

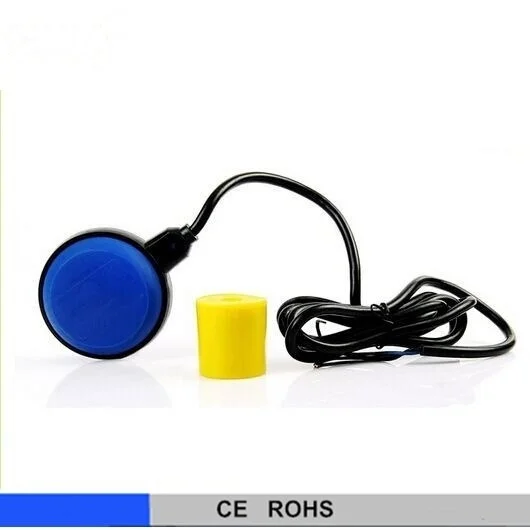

CX-M15-8 float switch water level controller

flow switch water leverl controller used for industry pump CX-70AB

float switch flow sensors water level controller CX-80AB

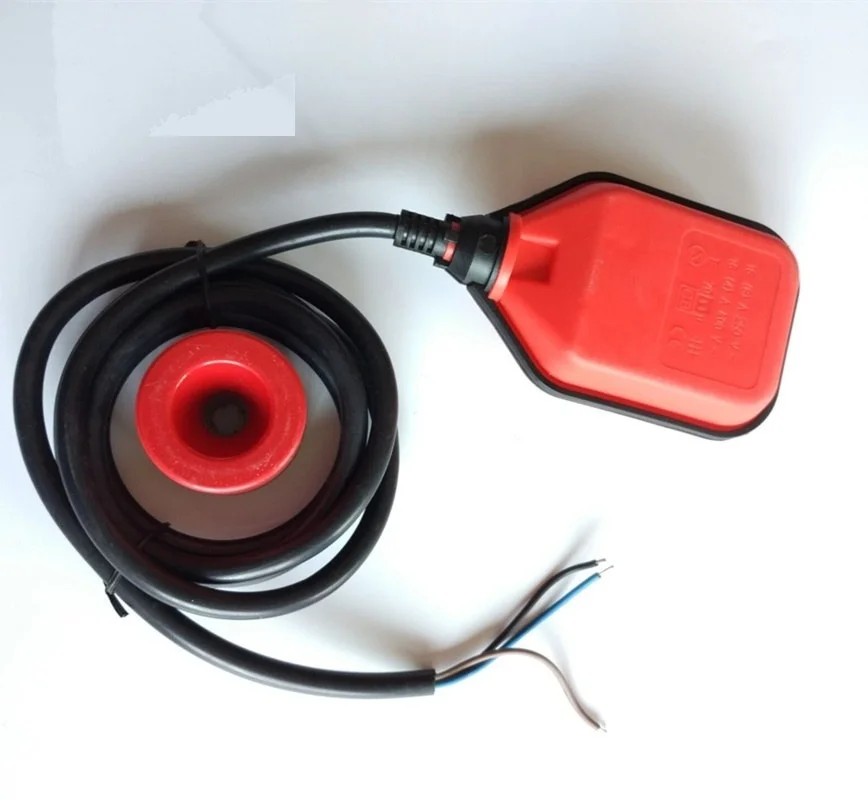

water level controller for pump red black square type cable float switch flow sensors 2m 3m 5m
