About the TA15052 Axial AC Fan
The TA15052 Axial AC Fan is part of the ELEHPD Axial Fan range. Electric moltor:Shaded pole type AC electric motor design Frame: aluminum alloy outside frame Anti-corrosive and moisture proof structure Impeller:UL-0 70% PBT+30FRP. Bearing:self lubricating bearing and ball bearing Insulation:class B Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher Dielectric strength:0.5mA 1500V/ACmin. Safety protection:Impedance protection Operating temperature:-10-+70℃ Storage temperature:-40-+70℃ ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Control panel cooling and air circulation
- Filtered ventilation for dusty industrial areas
- Condensation prevention in outdoor cabinets
- Machine cooling in continuous-duty production
- Telecom and power cabinets
How to specify the right Axial Fan
- Calculate the panel heat load in watts before selecting airflow
- Match the airflow to the required internal temperature rise
- Choose the filter class for the dust level on site
- Confirm the supply voltage and noise limit for the location
Specifications
Axial AC Fan TA15052 Series
![]() |
| General Data |
|
Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃ |

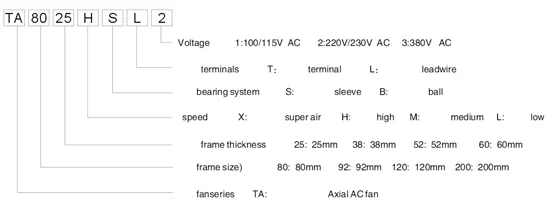

| Name System |
![]() |
| Technica Iparameter |
|
Dimension
(mm) |
Model |
Voltage
(VAC) |
Frequency
(Hz) |
Current
(AMP) |
Power
(Watts) |
Speed
(RPM) |
Air Flo
(CFM) |
Pressure
(inch/H2O) |
Moise
(dBA) |
Weight
(Gram) |
| 152×172×52 |
TA15052MSL-1 |
115 |
50 |
0.33 |
25 |
2500 |
180 |
0.38 |
49.6 |
900 |
| TA15052HSL-1 |
115 |
60 |
0.38 |
29.8 |
2700 |
195 |
0.52 |
53 |
900 |
| TA15052MSL-2 |
230 |
50 |
0.18 |
25 |
2500 |
180 |
0.38 |
49.6 |
900 |
| TA15052HSL-2 |
230 |
60 |
0.20 |
31 |
2700 |
195 |
0.52 |
53 |
900 |
| TA15052MSL-2 |
380 |
50 |
0.14 |
25 |
2500 |
180 |
0.38 |
49.6 |
900 | |

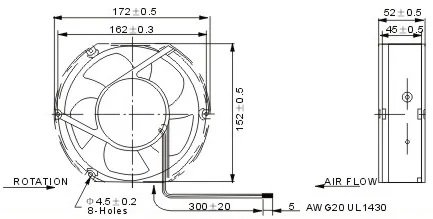

| Outline Drawing |
| | ![]() |
Frequently asked questions about the TA15052 Axial AC Fan
How do I size a panel fan?
Estimate the total heat dissipation inside the enclosure, decide the acceptable internal temperature rise, then select an airflow that removes that heat. As a first pass, 1 m3/min of airflow removes roughly 55 W for a 10 K rise at sea level.
Do I need a filter with the fan?
Anywhere with airborne dust, yes. The filter keeps conductive dust off the terminals and busbars; without it, the fan simply pushes contamination through the panel.
What voltage are the fans available in?
AC and DC options exist across the family. Confirm the voltage from the specification table or send your panel supply and we will match it.
Can these be used for condensation control?
For condensation you normally want an enclosure heater plus a thermostat or hygrostat rather than a fan alone. We can quote the heater and control together with the fan.
