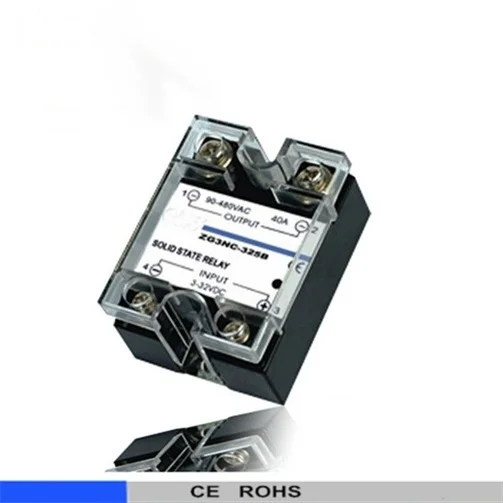

About the Solid state relay DC-AC 24-480VAC SSR
The Solid state relay DC-AC 24-480VAC SSR is part of the ELEHPD Solid State Relay Ssr range. Solid state relay DC-AC 24-480VAC SSR from the ELEHPD Solid State Relay Ssr range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Full catalogue description: solid state relay DC-AC 24-480VAC SSR 10A 25A 40A 60A 80A 100A
Typical applications
- Motor control centres and pump or fan starters
- Machine building, conveyors, packaging and CNC equipment
- HVAC control panels and building automation
- Water treatment, irrigation and pumping stations
- Panel retrofits replacing electromechanical control gear
How to specify the right Solid State Relay Ssr
- Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
- Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
- Confirm the auxiliary contact count needed for the control and indication circuit
- Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)
Specifications
solid state relay DC-AC 24-480VAC SSR 10A 25A 40A 60A 80A 100A | load current | 10A,20A,25A,30A,40A,50A, |
| 60A,75A,80A,90A,100A,120A |
| load voltage | 24-480VAC |
| input voltage | 3-32VDC |
| input current | DC3-25mA |
| voltage drop | ≤1.5V |
| leakage current | ≤2mA |
| on-off time | ≤10mS |
| dielectric strength | 2500VAC |
| insulation resistance | 1000MΩ500VDC |
| ambient temperature | -30~+75℃ |
| mounting method | bolt fixed |
| working indication | LED |
| weight | 90g(10A,25A)
135g(40A and above) |
