About the Photoelectric sensor E18 with sensor connector
The Photoelectric sensor E18 with sensor connector is part of the ELEHPD Photo Sensor range. Photoelectric sensor E18 with sensor connector from the ELEHPD Photo Sensor range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Motor control centres and pump or fan starters
- Machine building, conveyors, packaging and CNC equipment
- HVAC control panels and building automation
- Water treatment, irrigation and pumping stations
- Panel retrofits replacing electromechanical control gear
How to specify the right Photo Sensor
- Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
- Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
- Confirm the auxiliary contact count needed for the control and indication circuit
- Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)
Specifications

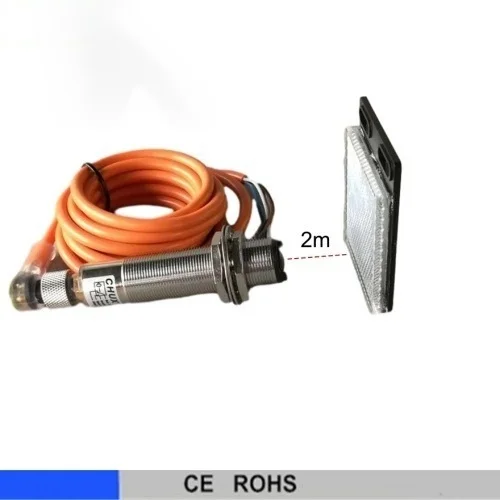

photoelectric sensor E18 with sensor connector
| 外形尺寸
OVERALL DIMENSIONS | |
| 漫
反
射
型
D
i
f
f
u
s
e
T
y
p
e | | 检测距离 Detection distance | 5-30cm |
| 直流
10-
30
VDC |
负逻辑
NPN
| 常开NO | E18-3A30NAT |
| 常闭NC | E18-3A30NBT |
| NPN.NO+NC | E18-3A30NCT |
| 正逻辑
PNP | 常开NO | E18-3A30PAT |
| 交流
90～
250
VAC | 常闭NC | E18-3A30PBT |
| PNP.NO+NC | E18-3A30PCT |
| SCR
可挂硅
ControHable
silicon | 常开NO | E18-2A30LAT |
| 常闭NC | E18-2A30LBT |
| 继电器输出Relay output | |
| 漫
反
射
型
R
e
t
r
o
r
e
f
l
i
c
t
i
v
e | | 检测距离 Detection distance | 2m |
| 直流
10-
10
VDC |
负逻辑
NPN
| 常开NO | E18-3B2NAT |
| 常闭NC | E18-3B2NBT |
| NPN.NO+NC | E18-3B2NCT |
| 正逻辑
PNP | 常开NO | E18-3B2PAT |
| 交流
90～
250
VAC | 常闭NC | E18-3B2PBT |
| PNP.NO+NC | E18-3B2PCT |
| SCR
可挂硅
ControHable
silicon | 常开NO | E18-2B2LAT |
| 常闭NC | E18-2B2LBT |
| 继电器输出Relay output | |
|
对
射
型
T
r
o
u
g
h
b
e
a
m
| | 检测距离 Detection distance | 5m |
| 直流
10-
10
VDC |
负逻辑
NPN
| 常开NO | E18-3C5NAT |
| 常闭NC | E18-3C5NBT |
| 一开一闭NO+NC | E18-3C5NCT |
| 正逻辑
PNP | 常开NO | E18-3C5PAT |
| 交流
90～
250
VAC | 常闭NC | E18-3C5PBT |
| 一开一闭NO+NC | E18-3C5PCT |
| SCR
可挂硅
ControHable
silicon | 常开NO | E18-2C5LAT |
| 常闭NC | E18-2C5LBT |
| 继电器输出Relay output | |
| 输出电流DC/SCR／继电器Control output | DC:200mA、AC：100mA |
| 消耗电流DC/AC Consumption current | DC<15mA、AC<10mA |
| 晌应时间DC/AC Response time | Dc<2ms、AC<2mA |
| 指向角Directional angle | 3。-10。 |
| 检测物体Detected object | 透明或不透明体transparent or opaque body |
| 工作环境温度WoJrking envlrOnment temDerature | 25℃～+55℃ |
| 工作环境照度Intensity ofillumination ofworking environment | 太阳光10000LX以下Sunlight underlOOOOLX白炽灯1000LX以下incandescentlamp under 1000LX |
| 外壳材料Shell materia | 塑料Plastic /metal |
| 防护等级Protection grade | IP54 |
