About the MCB type Dual Power Automatic transfer switch
The MCB type Dual Power Automatic transfer switch is part of the ELEHPD Dual Power AST range. MCB type Dual Power Automatic transfer switch from the ELEHPD Dual Power AST range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Full catalogue description: 2P 63A 230V MCB type Dual Power Automatic transfer switch ATS white color Circuit Breaker
Typical applications
- Motor control centres and pump or fan starters
- Machine building, conveyors, packaging and CNC equipment
- HVAC control panels and building automation
- Water treatment, irrigation and pumping stations
- Panel retrofits replacing electromechanical control gear
How to specify the right Dual Power AST
- Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
- Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
- Confirm the auxiliary contact count needed for the control and indication circuit
- Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)
Specifications
. Main parameter
| Rated Current Ie A | 6,10,16,20,25,32,40 | 50, 63 |
| Electrical Appliances Class | CB |
| Use Category | AC~33B |
| Tripping Current | 5~10In (Type C), 10~15In (Type D), |
| Rated voltage Ue | 220V (2P),380V (3P or 4P) |
| Rated frequency | 50/60Hz |
| Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
| Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |

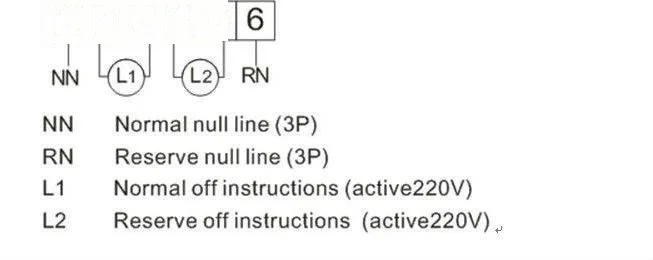

6. Terminal wiring diagram
