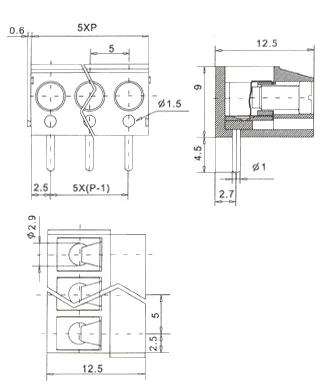

About the JK300R-500 PCB Terminal Block
The JK300R-500 PCB Terminal Block is part of the ELEHPD PCB Terminal Block range. 5.00/10.00mm JK300R-500 Terminal Block with UL Material Contact: Brass(CuZn) (metal housing) Terminal screw: Steel Galvanized and chormatized of Nickel plated or Tin plated (Standard option) Wire guard: Brass/Stainless steel Suface of solder tail: Tin plated Insulator body: Polyamide(Glass filled) (housing) (UL94V-0) Electrical Voltage rating: 250VAC Current rating: 16Amps/way max. I ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Panel wiring and control cabinet assembly
- Field installation of power and signal cabling
- OEM harness and cable assembly production
- Marine, rail and outdoor installations needing vibration resistance
- Retrofit and maintenance kits for contractors
How to specify the right PCB Terminal Block
- Match the conductor cross-section to the terminal's rated capacity
- Confirm the clamping technology: screw, spring-cage or push-in
- Check the rated voltage and the insulation material for the ambient temperature
- Select the housing colour coding used in your panel standard
Frequently asked questions about the JK300R-500 PCB Terminal Block
What wire range does this accept?
The accepted conductor range is listed in the specification table above. If your conductor is outside that range, contact us with the cable size and we will recommend the correct frame.
Are these suitable for high-vibration installations?
Spring-cage and push-in terminations resist loosening better than plain screw terminals under vibration. Specify the spring type for mobile, marine or rail applications.
Can I order mixed sizes in one shipment?
Yes. Mixed-size and mixed-colour orders are normal for this product family; send your picking list and we will quote the combined quantity.
What packaging do they ship in?
Standard export cartons with the quantity per box shown on the label. Custom labelling and buyer-branded boxes are available on qualified volumes.
