ERH1 Busbar Connector

About the ERH1 Busbar Connector

The ERH1 Busbar Connector is part of the ELEHPD Busbar range. ERH1 series comb-shape busbar is a kind of new product developed by our company recently, break through tradional connection way for put-in wire for mini circuit breaker, increase the contact area, reduce the consumption and temperature-rise. The product has the advantage as safety、reliability、saving-time、reasonable price etc. because the busbar is fixed in the insulation channel and human body cannot touch the electrified unit. This product is made of pure copper, with excellent conductive property、low contact resistance and complete specification, so it is widely welcomed by the customers. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right Busbar

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

Applicable scope

ERH1 series comb-shape busbar is a kind of new product developed by our company recently, break through tradional connection way for put-in wire for mini circuit breaker, increase the contact area, reduce the consumption and temperature-rise. The product has the advantage as safety、reliability、saving-time、reasonable price etc. because the busbar is fixed in the insulation channel and human body cannot touch the electrified unit. This product is made of pure copper, with excellent conductive property、low contact resistance and complete specification, so it is widely welcomed by the customers.

Types and meanings

Technical parameters

Test item	Test time
test in risk of fire	30S
Dielectric strength property	60S
Resistant moisture tost	60S
Alternating moisture property	48 hours
Temperature-rise	1 hour

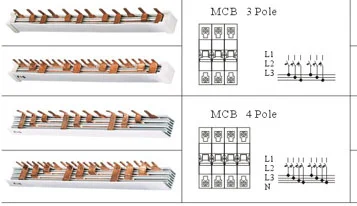

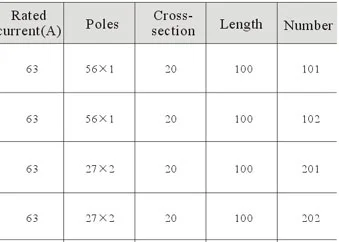

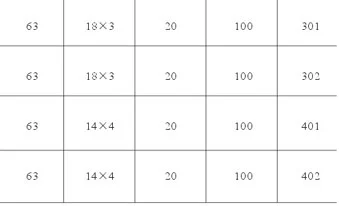

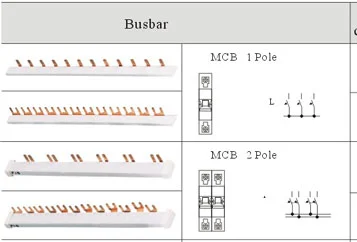

Specifications and types

Frequently asked questions about the ERH1 Busbar Connector

What is the difference between an MCB and an MCCB?

An MCB (miniature circuit breaker) is a DIN-rail device for final circuits, typically rated up to 125 A with a fixed trip curve. An MCCB (moulded case circuit breaker) is a larger device for main and sub-main distribution, usually 16 A to 1600 A, with adjustable thermal and magnetic settings and a higher breaking capacity. Use an MCB for branch circuits and an MCCB where you need adjustability or higher fault ratings.

How do I choose between a Type B, C and D trip curve?

Type B trips between 3 and 5 times rated current and suits resistive loads such as lighting and heaters. Type C trips between 5 and 10 times and is the general-purpose choice for socket circuits and mixed loads. Type D trips between 10 and 20 times and is used for loads with high inrush, such as motors, transformers and large LED drivers.

What does 6 kA breaking capacity mean in practice?

It is the maximum prospective short-circuit current the device can safely interrupt. 6 kA covers most domestic and light commercial installations. Where the transformer is close and the fault level is higher, specify 10 kA devices so the breaker still clears the fault without damage.

Can these devices be supplied with your own brand?

Yes. OEM branding, buyer-specific labels, custom carton print and private-model numbering can be arranged on qualified order volumes.
