ER-98 Road Lamp

About the ER-98 Road Lamp

The ER-98 Road Lamp is part of the ELEHPD Road Lamp range. Structural Features: ● Body: Pressure die-cast aluminum, gear access from top, glossy surface, unity sealed design. ● Reflector: Anodized and sealed single piece high purity, bat light curve. ● Cover: toughened flat glass. Access to the lamp from bottom. ● Plastic alloy whorl sealed device suit for E40 and E27 lamp head, adjust lighting source site. ● Lamp and pole install easily, two installation ways: perpendicular and level ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Commercial interiors: offices, retail, showrooms and hospitality
Industrial high-bay lighting for warehouses and workshops

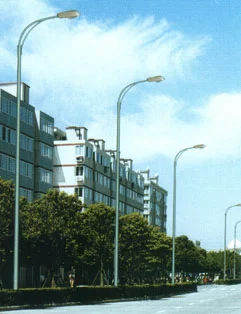

Outdoor area, street and roadway lighting
Warehouse, logistics and cold-store facilities
Project lighting specified through M&E contractors

How to specify the right Road Lamp

Work from the required lux level at the task plane, then the mounting height
Match beam angle to the space: narrow for high ceilings, wide for low uniform coverage
Check the IP and IK rating for the installation environment
Confirm colour temperature and CRI with the interior designer or specifier

Specifications

ER-98 Road Lamp

Specification:
Protection degree: IP65
Distributed light source: 150W, 250W, 400W
Rat. Voltage & Frequency: 220V, 50Hz

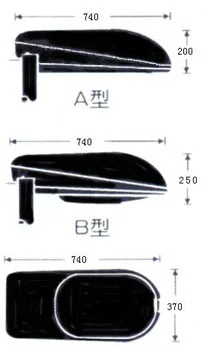

Dimensions of installation pipe: 874×380×276
Installation tube size:Φ60
Material: Die casting aluminum
Height of installation: 8m-13m

Structural Features:
● Body: Pressure die-cast aluminum, gear access from top, glossy surface, unity sealed design.
● Reflector: Anodized and sealed single piece high purity, bat light curve.
● Cover: toughened flat glass. Access to the lamp from bottom.
● Plastic alloy whorl sealed device suit for E40 and E27 lamp head, adjust lighting source site.
● Lamp and pole install easily, two installation ways: perpendicular and level

Graph of light distribution:
Luminaire efficiency:75.4%

Frequently asked questions about the ER-98 Road Lamp

What colour temperature should I specify?

4000 K neutral white is the safe general choice for industrial and commercial interiors. 3000 K suits hospitality and retail where a warmer look is wanted. 5000-6500 K is common for outdoor and roadway lighting.

What IP rating do I need for outdoor use?

IP65 is the practical minimum for exposed outdoor fixtures. For wash-down or coastal locations, specify IP66 with a corrosion-resistant housing and confirm the IK impact rating.

Can the fixtures be dimmed or sensor-controlled?

Dimming and sensor variants depend on the driver fitted to the model. Tell us the control protocol you use (0-10 V, DALI, triac) and we will confirm compatible models.

Do you supply photometric data for lighting design?

IES/LDT photometric files can be supplied for project models so your designer can run the lighting calculation in DIALux or Relux.
