EI Needle Power Transformer

About the EI Needle Power Transformer

The EI Needle Power Transformer is part of the ELEHPD Power Transformer range. EI-NL needle power transformer (1VA-8VA) Technique parameter Power Size Stitch Installation EI-NL-1VA 28x 12x 26 5 Vertical EI-NL-3VA 35x 16x 30 5 Vertical 35x 21x 30 5 horizontal EI-NL-5VA 42x 18x 34 9 horizontal EI-NL-6VA 42x 23x 24 6 horizontal EI-NL-7VA 48x 17x 40 12 horizontal EI-NL-8VA 48x 21x 40 9 horizontal Remarks:There a ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Industrial control panels and PLC power rails
LED drivers, signage and display power
Battery charging and DC backup systems
Motor drives, welding sets and rectifier assemblies
Instrumentation and test equipment

How to specify the right Power Transformer

Size the output current with at least 20-30 % headroom over the load
Check the input range covers the local supply, including brown-outs
Confirm the enclosure and cooling method for the panel temperature
Verify the protection set: over-current, over-voltage, thermal and short circuit

Specifications

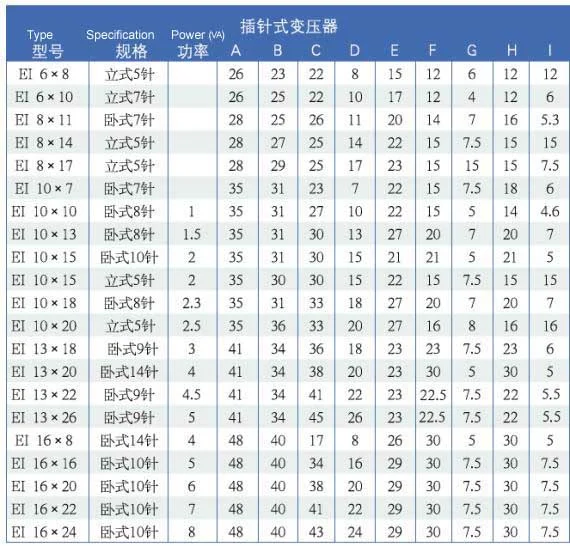

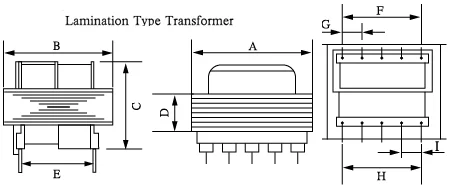

EI-NL needle power transformer (1VA-8VA)

Technique parameter

Power	Size	Stitch	Installation
EI-NL-1VA	28x 12x 26	5	Vertical
EI-NL-3VA	35x 16x 30	5	Vertical
35x 21x 30	5	horizontal
EI-NL-5VA	42x 18x 34	9	horizontal
EI-NL-6VA	42x 23x 24	6	horizontal
EI-NL-7VA	48x 17x 40	12	horizontal
EI-NL-8VA	48x 21x 40	9	horizontal

Remarks:There are various kinds of needle transformer framework, the needle and installation way is different, please see the samples for reference.
If you have any questions, please call us or visit our website, the above is the most common seven specifications.
