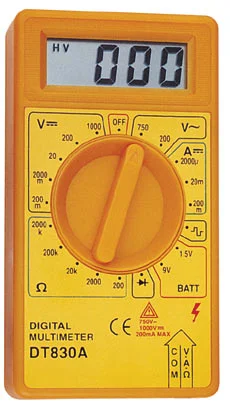

DT830A DIGITAL MULTIMETER

About the DT830A DIGITAL MULTIMETER

The DT830A DIGITAL MULTIMETER is part of the ELEHPD Multimeter range. DT830A 3 1/2 DIGITAL MULTIMETER Function Range Accuracy DC Voltage 200mV-1000V ±(0.5%+2dgt) AC Voltage 200V-750V ±(1.2%+10dgt) DC Current 200uA-10A ±(1.0%+2dgt) Resistance 200 Ω-2MΩ ±(0.8%+2dgt) Diode Test Yes Signal Test Yes Battery Test 1.5V-9V Power Supply 9V Battery 6F ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Multimeter

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

DT830A 3 1/2 DIGITAL MULTIMETER

	Function	Range	Accuracy
DC Voltage	200mV-1000V	±(0.5%+2dgt)
AC Voltage	200V-750V	±(1.2%+10dgt)
DC Current	200uA-10A	±(1.0%+2dgt)
Resistance	200Ω-2MΩ	±(0.8%+2dgt)
Diode Test	Yes
Signal Test	Yes
Battery Test	1.5V-9V
Power Supply	9V Battery 6F22
Display Size	16×48mm
Maximum Display	1999
Products Size	126×70×24mm
Product Net Weight	150g
Color available	Yellow, Black
Standard Accessories	Test Lead, Battery, Manual

Frequently asked questions about the DT830A DIGITAL MULTIMETER

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.
