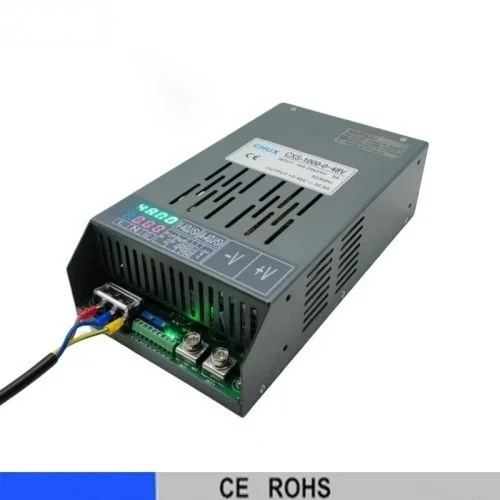

About the AC DC Digital Screen UPS Switching Power

The AC DC Digital Screen UPS Switching Power is part of the ELEHPD Adjustable Display Series range. AC DC Digital Screen UPS Switching Power from the ELEHPD Adjustable Display Series range. ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Full catalogue description: AC DC 1000W Digital Screen UPS Switching Power Supply Adjustable SMPS with External Control

Typical applications

Motor control centres and pump or fan starters
Machine building, conveyors, packaging and CNC equipment
HVAC control panels and building automation
Water treatment, irrigation and pumping stations
Panel retrofits replacing electromechanical control gear

How to specify the right Adjustable Display Series

Size the contact rating for the inductive load, not just the resistive current (AC-3 duty for motors)
Check the coil voltage and frequency available in the panel: 24 V DC, 110 V, 230 V or 400 V AC
Confirm the auxiliary contact count needed for the control and indication circuit
Match the enclosure rating to the environment (IP20 inside a panel, IP65 on the machine)

Specifications

AC DC 1000W Digital Screen UPS Switching Power Supply Adjustable SMPS with External Control

Product Parameters

Model CXS-1000-12 CXS-1000-24 CXS-1000-36 CXS-1000-48 CXS-1000-72 CSX-1000-96 CSX-1000-110 CSX-1000-150 CSX-1000-220

Output Characteristics DC output voltage 12V 24V 36V 48V 72V 96V 110V 150V 220V

Rated current 83.3A 41.7A 27.8A 20.8A 13.9A 10.4A 9.1A 6.7A 4.5A

Current range 0-83.3A 0-41.7A 0-27.8A 0-20.8 0-13.9A 0-10.4A 0-9.1A 0-6.7A 0-4.5A

Rated Power 1000W

Ripple 200mV 200mV 260mV 350mV 500mV 600mV 850mV 900mV 1000mV

Constant current optimum range 6-12V 12-24V 18-36V 24 -48V 36-72V 48-96V 55-110V 75 -150V 110-220V

Voltage accuracy ±1.0%

Line Regulation ±1.0%

Load Regulation ±1.0%

Startup & Rise Time 1500mS,100mS/230VAC(Fully loaded)

Voltage range 180-264VAC/245-370VDC

Input characteristics Frequency range 45Hz -65Hz

Power Factor PF≥0.65/230VAC(Fully loaded)

efficiency 85% 86% 87% 89% 90% 90% 90% 91% 91%

AC Current <11A

Leakage Current <3.0mA/240VAC

Short Circuit Enter constant current

Over temperature Shut down the output, and automatically recover or restart after the temperature drops

Protection features Output voltage adjustment 0-13.2V 0-26.4V 0-39.6V 0-52.8V 0-79.2V 0-105.6V 0-121V 0-165V 0-242V

Output constant current adjustment 0-83.3A 0-41.7A 0-27.8A 0-20.8A 0-13.9A 0-10.4A 0-9.1A 0-6.7A 0-4.5A

External potentiometer External potentiometer control (voltage, current)

Analog voltage control 0 - 5V/0 - 10V control (voltage, current)

Auxiliary power supply 12V 0.5A

Remote control switch Default power on, high level power off (3V-12V)

Environmental characteristics Operating temperature -20-+60ºC

Operating humidity -20-90%RH without condensation

Storage temperature/humidity -40-+85ºC,10-95%RH without condensation

Vibration resistance 10-500Hz, 2G 10 minutes/cycle, 60 minutes for each of X, Y and Z axes

Safety and electromagnetic compatibility Insulation resistance Input to output: 100Mhms/500VDC/25ºC/70%RH

Pressure resistance I/P-0/P:1.2KVAC I/P-FG:1.2KVAC 0/P-FG:0.5KVAC

Product size 27715570mm(LWH)

Net weight 2.6 KG

Remark 1. All parameters are measured at 230VAC input voltage, rated load and 25ºC unless otherwise specified.
2. Ripple and noise voltage are measured with a 20MHz bandwidth oscilloscope with 0.1μ and 47μ capacitors added to the end of a 12-inch twisted pair, and measured at 20MHZ bandwidth.
3. Accuracy: includes setting error, linear regulation rate and load regulation rate.
4. Output must be derated in low input voltage conditions, please refer to the static characteristic curve for details.
5. Startup time is measured under cold start, and frequent switching may increase the startup time."

Q: What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

Q: How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.

Q: Do you supply the coil voltage I need?

Coil voltages are specified per order. Send the model number, coil voltage and frequency you require and we will confirm availability and lead time.

Q: Are auxiliary contacts included?

Base models come with the standard auxiliary contact configuration for that frame. Add-on auxiliary blocks and mechanical interlocks can be quoted with the contactor.

Frequently asked questions about the AC DC Digital Screen UPS Switching Power

What is the difference between a contactor and a relay?

A contactor is built for switching power circuits repeatedly at high current, often with motor duty ratings (AC-3) and arc-suppressing chambers. A relay switches control signals at low current. In practice: contactor for the motor, relay in the control circuit that drives the contactor coil.

How do I calculate the correct contactor size for a motor?

Use the motor's full-load current, apply the AC-3 rating for the operating voltage, and allow for the number of starts per hour. As a rule of thumb, the contactor's AC-3 rating should be at least equal to the motor FLC, then step up one frame if the duty is heavy.
