3RV Motor Protection Circuit Breaker

About the 3RV Motor Protection Circuit Breaker

The 3RV Motor Protection Circuit Breaker is part of the ELEHPD Motor Protector range. 3RV1-A 3RV1-B The model No. and meaning Main technical parameters: standard Three-phase Motor 4Pole 400V AC The commuting range of overload tripping device Circuit breaker Order NO. AC Contactor Order NO. Specification Short-circuit treaking capacity /q ka rated power Motor Current 0.06 0.2 0.14-0.2 3RV1011-0BA10 3RT1015-1AP01 SOO 50 0.06 0.2 0.18-0.25 3RV1011-0CA10 3RT1015-1AP01 SOO 50 0.09 0.3 ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.

Typical applications

Consumer units and distribution boards in residential buildings
Commercial and retail fit-outs where selective protection is required
Industrial control panels and machine-builder assemblies
Solar PV, EV charger and battery-storage sub-circuits
OEM equipment where a DIN-rail protective device is specified

How to specify the right Motor Protector

Match the rated current to the circuit design current, then check the cable ampacity
Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement

Specifications

3RV1-A

3RV1-B

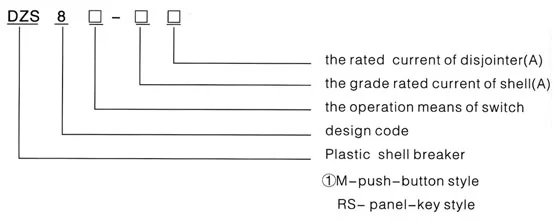

The model No. and meaning

Main technical parameters :

standard Three-phase Motor 4Pole 400V AC	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	50
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.28-0.1	3RV1011-0EA10	3RT1015-1AP01	SOO	50
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	50
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	50
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	50
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.8-2.5	3RV1011-1CA10	3RT1015-1AP01	SOO	50
1.1	2.7	2.2-3.2	3RV1011-1DA10	3RT1015-1AP01	SOO	50
1.5	3.6	2.8-4	3RV1011-1EA10	3RT1015-1AP01	SOO	50
1.5	3.6	3.5-5	3RV1011-1FA10	3RT1015-1AP01	SOO	50
2.2	5	4.5-6.3	3RV1011-1GA10	3RT1015-1AP01	SOO	50
3	6.5	5.5-8	3RV1011-1HA10	3RT1015-1AP01	SOO	50
4	8.5	7-10	3RV1011-1JA10	3RT1016-1AP01	SOO	50
5.5	11.5	9-12	3RV1011-1KA10	3RT1017-1AP01	SOO	50
7.5	15.5	11-16	3RV1011-4AA10	3RT1025-1AP01	SO	50
7.5	15.5	14-20	3RV1011-4BA10	3RT1025-1AP01	SO	50
11	22	17-22	3RV1011-4CA10	3RT1026-1AP01	SO	50
11	22	20-25	3RV1011-4DA10	3RT1027-1AP01	SO	50

Tripping grade : 10 , matching style 2 : /q =50KA

standard Three-phase Motor 4Pole 400V AC	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power p kw	I Motor Current A
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	50
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.28-0.1	3RV1011-0EA10	3RT1015-1AP01	SOO	50
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	50
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	50
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	50
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.8-2.5	3RV1011-1CA10	3RT1015-1AP01	SO	50
1.1	2.7	2.2-3.2	3RV1011-1DA10	3RT1015-1AP01	SO	50
1.5	3.6	2.8-4	3RV1011-1EA10	3RT1015-1AP01	SO	50
1.5	3.6	3.5-5	3RV1011-1FA10	3RT1015-1AP01	SO	50
2.2	5	4.5-6.3	3RV1011-1GA10	3RT1015-1AP01	SO	50
3	6.5	5.5-8	3RV1011-1HA10	3RT1015-1AP01	SO	50
4	8.5	7-10	3RV1011-1JA10	3RT1016-1AP01	SO	50
5.5	11.5	9-12	3RV1011-1KA10	3RT1017-1AP01	SO	50
7.5	15.5	11-16	3RV1011-4AA10	3RT1025-1AP01	SO	50
7.5	15.5	14-20	3RV1011-4BA10	3RT1025-1AP01	SO	50

Tripping grade : 10 , matching style 2 : /q =100KA

standard Three-phase Motor 4Pole 400V AC	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current
0.04	0.16	0.11-0.16	3RV1011-0AA10	3RT1015-1AP01	SOO	130
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	130
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	130
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	130
0.09	0.3	0.28-0.4	3RV1011-0EA10	3RT1015-1AP01	SOO	130
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	130
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	130
0.18	0.6	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	130
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	130
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	130
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	130
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	130
0.04	0.16	0.11-0.16	3RV1021-0AA10	3RT1024-1AP00	SO	130
0.06	0.2	0.14-0.2	3RV1021-0BA10	3RT1024-1AP00	SO	130
0.06	0.2	0.18-0.25	3RV1021-0CA10	3RT1024-1AP00	SO	130
0.09	0.3	0.22-0.32	3RV1021-0DA10	3RT1024-1AP00	SO	130
0.09	0.3	0.28-0.4	3RV1021-0EA10	3RT1024-1AP00	SO	130
0.12	0.4	0.35-0.5	3RV1021-0FA10	3RT1024-1AP00	SO	130
0.18	0.6	0.45-0.63	3RV1021-0GA10	3RT1024-1AP00	SO	130
0.18	0.6	0.55-0.8	3RV1021-0HA10	3RT1024-1AP00	SO	130
0.25	0.85	0.7-1	3RV1021-0JA10	3RT1024-1AP00	SO	130
0.37	1.1	0.9-1.25	3RV1021-0KA10	3RT1024-1AP00	SO	130
0.55	1.5	1.1-1.6	3RV1021-1AA10	3RT1024-1AP00	SO	130
0.75	1.9	1.4-2	3RV1021-1BA10	3RT1024-1AP00	SO	130
0.75	1.9	1.8-2.5	3RV1021-1CA10	3RT1024-1AP00	SO	130
1.1	2.7	2.2-3.2	3RV1021-1DA10	3RT1024-1AP00	SO	130
1.5	3.6	2.8-4	3RV1021-1EA10	3RT1024-1AP00	SO	130
1.5	3.6	3.5-5	3RV1021-1FA10	3RT1024-1AP00	SO	130
2.2	5	4.5-6.3	3RV1021-1GA10	3RT1024-1AP00	SO	130
3	6.5	5.5-8	3RV1021-1HA10	3RT1024-1AP00	SO	130
4	8.5	7-10	3RV1021-1JA10	3RT1006-1AP00	SO	130
5.5	11.5	9-12	3RV1021-1KA10	3RT1006-1AP00	SO	130
7.5	15.5	11-16	3RV1021-4AA10	3RT1026-1AP00	SO	100
7.5	15.5	14-20	3RV1021-4BA10	3RT1026-1AP00	SO	100

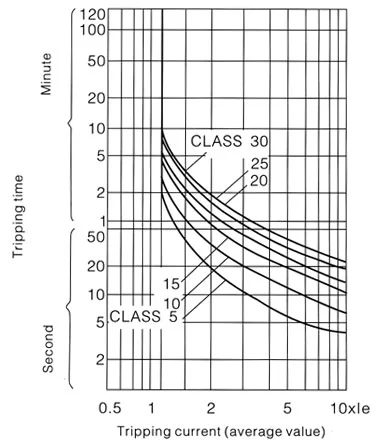

Tripping current (average ＆#118alue)

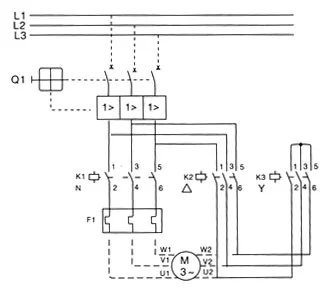

Electrical Circuit Figure-Y-Δ Main Electrical Circuit of Line Connection :
