About the 1602 MAIN SWITCH
The 1602 MAIN SWITCH is part of the ELEHPD Isolator(Main Switch) range. MAIN SWITCH CHARACTERISTICS VOLT 380V~ FREQUENCY 60HZ AMP.RANGE 3.75 ÷ 30A I.C at 380V~ 2KA NUMBER OF PHASES 1601 1P 1601N-1601NI- 1611N-1611NI 1P+N 1602 2P 1602N 2P+N ELEHPD manufactures and exports low voltage electrical products from Yueqing, Zhejiang, China, supplying distributors, panel builders, M&E contractors and OEM buyers worldwide.
Typical applications
- Consumer units and distribution boards in residential buildings
- Commercial and retail fit-outs where selective protection is required
- Industrial control panels and machine-builder assemblies
- Solar PV, EV charger and battery-storage sub-circuits
- OEM equipment where a DIN-rail protective device is specified
How to specify the right Isolator(Main Switch)
- Match the rated current to the circuit design current, then check the cable ampacity
- Pick the trip curve to the load: B for resistive/lighting, C for general mixed loads, D for motors and transformers
- Confirm the breaking capacity meets the prospective short-circuit current at the point of installation
- Verify the pole configuration (1P, 1P+N, 2P, 3P, 3P+N, 4P) against the system earthing arrangement
Specifications
|
MAIN SWITCH |
|
|
![]()
CHARACTERISTICS
VOLT 380V~
FREQUENCY 60HZ

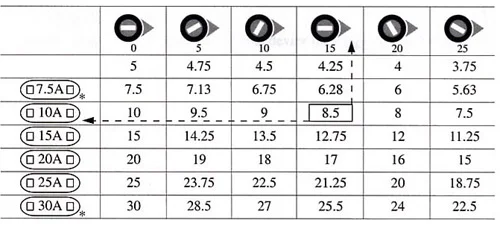

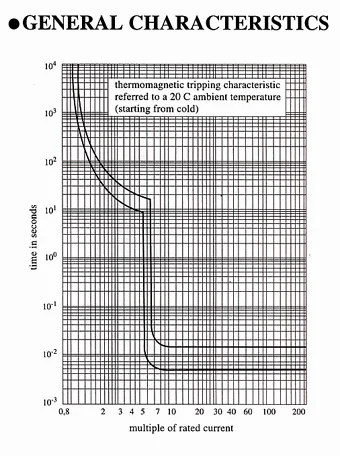

AMP.RANGE 3.75÷30A
I.C at 380V~ 2KA
NUMBER OF PHASES
1601 1P
1601N-1601NI-
1611N-1611NI 1P+N
1602 2P
1602N 2P+N
1603 3P
1603N 3P+N
EMPERATURE 0-40℃
TERMINAL SIZE 6MM2
ISOLATING SWITCH |
![]() | |
Frequently asked questions about the 1602 MAIN SWITCH
What is the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is a DIN-rail device for final circuits, typically rated up to 125 A with a fixed trip curve. An MCCB (moulded case circuit breaker) is a larger device for main and sub-main distribution, usually 16 A to 1600 A, with adjustable thermal and magnetic settings and a higher breaking capacity. Use an MCB for branch circuits and an MCCB where you need adjustability or higher fault ratings.
How do I choose between a Type B, C and D trip curve?
Type B trips between 3 and 5 times rated current and suits resistive loads such as lighting and heaters. Type C trips between 5 and 10 times and is the general-purpose choice for socket circuits and mixed loads. Type D trips between 10 and 20 times and is used for loads with high inrush, such as motors, transformers and large LED drivers.
What does 6 kA breaking capacity mean in practice?
It is the maximum prospective short-circuit current the device can safely interrupt. 6 kA covers most domestic and light commercial installations. Where the transformer is close and the fault level is higher, specify 10 kA devices so the breaker still clears the fault without damage.
Can these devices be supplied with your own brand?
Yes. OEM branding, buyer-specific labels, custom carton print and private-model numbering can be arranged on qualified order volumes.
