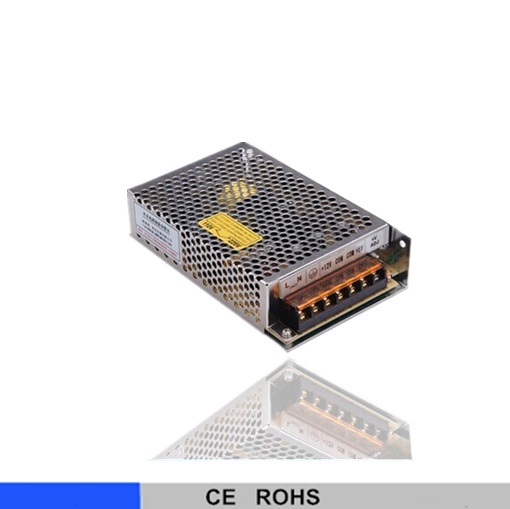

75W Single switching power supply 12v 24v 5v
75W Single switching power supply 12v 24v 5v
Features :
• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 77KHz
• 2 years warranty
| Model | S-75-12 | S-75-15 | S-75-24 | S-75-48 |
| DC output voltage | 12V | 15V | 24V | 48V |
| Rated output current | 6A | 5.0A | 3A | 1.5A |
| Output current range | 0-6A | 0-5A | 0-3A | 0-1.5A |
| Wave and noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 79% | 82% | 83% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range: | 85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC | |||
| AC inrush current: | Cold-start current 15A/115V 30A/230V | |||
| Overload protection: | 105%~150% Type:plusing hiccup shutdown Reset:auto recovery | |||
| Setup rise hold-up time: | 200ms,50ms,20ms | |||
| Withstand voltage:Input and output internal: | 1.5KvAC,Output and enclosure:0.5KvAC | |||
| Isolation resistance: | Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ | |||
| Working temperature | 0~50°C | |||
| Safety standards: | GB4943 UL60950 EN60950 | |||
| EMC standards: | EN55022 GB9254,class A | |||
| Overall dimension: | 159*97*38mm | |||
| Weight: | 0.56Kgs | |||
