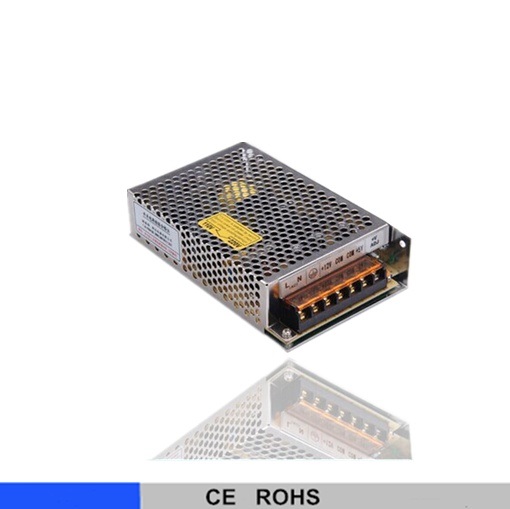

S-60W Single switching power supply 12v 24v 5v
60W Single switching power supply 12v 24v 5v
Features :
• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 56KHz
• 2 years warranty
PARAMETER SHEET
| 60W Single Output Switching Power Supply S-60 | ||||
| MODEL | S-60-5 | S-60-12 | S-60-15 | S-60-24 |
| DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 12A | 5A | 4A | 2.5A |
| CURRENT RANGE | 0 ~ 12A | 0 ~ 5A | 0 ~ 4A | 0 ~ 2.5A |
| RATED POWER | 60W | 60W | 60W | 60W |
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% |
| SETUP, RISE TIME | 300ms, 50ms, /230VAC 800ms, 50ms/115VAC at full load | |||
| HOLD TIME(Typ.) | 90ms/230VAC 12ms/115VAC at full load | |||
| VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 73% | 76% | 77% | 79% |
| AC CURRENT | 2A/115VAC 1A/230VAC | |||
| INRUSH CURRENT (max.) | COLD START 20A/115VAC 40A/230VAC | |||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||
| OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | ||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. | ||||
| WORKING TEMP. | -10 ~ +60ºC (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY STANDARDS | Design refer to UL1012, UL1950, TUV EN60950 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | |||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5;6,8,11; ENV50204, EN55024, Light industry level, criteria A | |||
| MTBF | 316.2K hrs min. MIL-HDBK-217F (25ºC) | |||
| DIMENSION | 159*97*38mm (L*W*H) | |||
| PACKING | 0.463Kg; 30pcs/15.56Kg/0.0250CMB | |||
