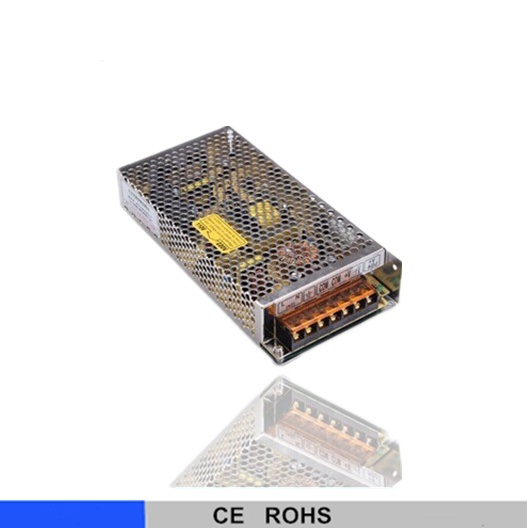

Mostly popular by customer 100w 12v 24v 48v single output switching power supply
Mostly popular by customer 100w 12v 24v 48v single output switching power supply
Features :
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 2 years warranty
Model Specification | S-100-5 | S-100-12 | S-100-15 | S-100-24 | S-100-36 | S-100-48 | ||
DC output voltage | 5V | 12V | 15V | 24V | 36V | 48V | ||
Output voltage rang(Note:2) | +/-2% | +/-1% | +/-1% | +/-1% | +/-1% | +/-1% | ||
Rated output current | 40A | 25.8A | 23.2A | 14.6A | 13A | 7.3A | ||
Output current range | 040A | 025.8A | 023.2A | 014.6A | 013A | 07.3A | ||
Wave and noise(Note:3) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | ||
Inlet stability(Note:4) | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | ||
Load stability(Note:5) | +/1% | +/1% | +/1% | +/1% | +/1% | +/1% | ||
DC output power | 300W | 348.3W | 348W | 351W | 351W | 350.4W | ||
Efficiency | 76% | 79% | 78% | 82% | 84% | 83% | ||
Adjustable range for DC voltage | 6-9V | 12-15V | 13.5-18V | 20-26.4V | 34-38V | 41-56V | ||
AC input voltage range | 85~132VAC/180~264VAC selectd by switch 47~63Hz; 255~370VDC | |||||||
Input current | 2.4A/115V 1.2A/230V | |||||||
AC inrush current | Cole-start current 15A/115V 36A/230V | |||||||
Leakage current | <1mA/240VAC | |||||||
Overload proctection | 105%~150% | 150%~200% | 105%~150% | |||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||
Over-voltage proctection
| 105%~150% | 150%~200% | 105%~150% | |||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||
High-temperature and protection | 105%~150% | 150%~200% | 105%~150% | |||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||
Temperature coefficient | +/-0.03%(0~50) | |||||||
Setup, rise,hold up time | 200ms,100ms,30ms | |||||||
Vibration | 10-500Hz,,2G10min,/cycle, periodfor 60min,Each axes | |||||||
Withstand voltage | Input and output interal:1.5KvAC,Input ad enclosure:1.5KvAC Output and enclosure:0.5KvAC | |||||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||||
Working temperature and humidity | -10+60(Refer to output derating curve),20%90%RH | |||||||
Stoerall dimension | -20+85.10%~95%RH | |||||||
Overall dimension | 199*98*38mm | |||||||
Weight | 0.65Kgs | |||||||
Safety standards | Meet UL1012 requirement(Not apply for the mark) | |||||||
EMC standaras | Meet FCC PART 15J Conduction class B | |||||||

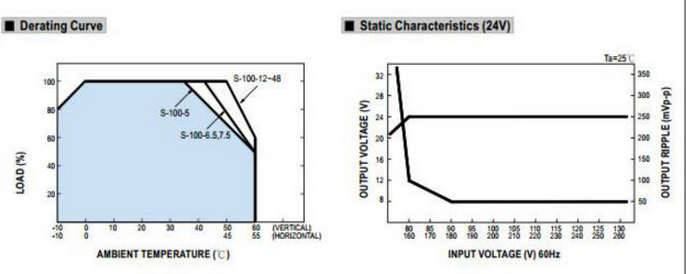

OVERALL DIMENSION
