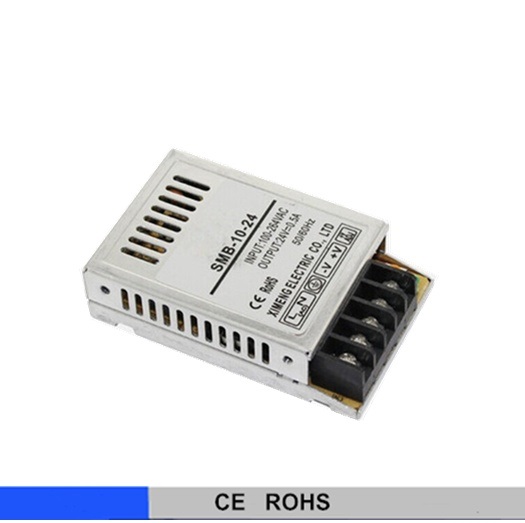

mini type ultra thin industry switching power supply series SMB-10W
1.100% full load burn-in test.
2.1 years warranty.
3. High property price
4.High quality as same as made in Europe or America.
Specification:
full range input switching power supply
Model | SMB-10-5 | SMB-10-12 | SMB-10-15 | SMB-10-24 | ||
output | DC voltage | 5V | 12V | 15V | 24V | |
Voltage tolerance | ±1% | ±1% | ±1% | ±1% | ||
Rated current | 2A | 1A | 0.7A | 0.5A | ||
Current range | 0~2A | 0~1A | 0~0.7A | 0~0.5A | ||
Rated power | 10W | 12W | 10.5W | 12W | ||
Ripple&noise | 80mvp-p | 120mvp-p | 120mvp-p | 120mvp-p | ||
DCvoltage ADJ.range | -9%~+10% | ±10% | ±10% | ±10% | ||
input | Voltage range | |||||
frequency | 47~63HZ | |||||
AC current | 0.25A/115VAC,0.15A/230VAC | |||||
efficiency | 76% | 79% | 79% | 81% | ||
Inrush current | Cold start current 15A/115VAC,30A/230VAC | |||||
Leakage current | < 0.25mA/240VAC | |||||
protection | overload | |||||
protection type:hiccup mode,auto-recovery after fault condition is removed | ||||||
Over voltage | 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | ||
protection type:hiccup mode,auto-recovery after fault condition is removed | ||||||
Over temperature | When temperature of transistor inner node is over 150°C, start over temperature protection | |||||
protection type:hiccup mode,auto-recovery after temperature become normal | ||||||
environment | Working temp,humidity | |||||
Storagetemp,humidity | -20°C~+85°C,10%~95%RH non-condensing | |||||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | |||||
safety | Withstand voltage | |||||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||||
Fitstandard | Safety standard | |||||
EMC standard | Fit EN55022,CLASSA | |||||
