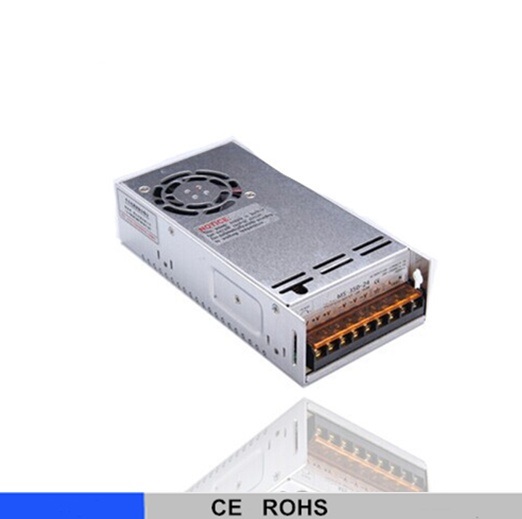

mini type mini size MS series electric industry switching power supply MS series MS-400W

Features :

• Universal AC input / Full range

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 37KHz

• 2 years warranty

MODEL	MS-400-5	MS-400-12	MS-400-15	MS-400-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
RATED CURRENT	70A	33A	26A	16A
CURRENT RANGE	0 ~ 70A	0-33A	0-26A	0-16A
RATED POWER	350W	396W	390W	384W
RIPPLE & NOISE (max.) Note.2	100mVp-p	100mVp-p	120mVp-p	120mVp-p
VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V
VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
SETUP, RISE TIME	200ms 100ms
HOLD UP TIME (Typ.)	30ms
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE	47~63Hz
EFFICIENCY(Typ.)	70%	76%	77%	79%
AC CURRENT (Typ.)	0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.)	COLD START15A/115VAC 30A/230VAC
LEAKAGE CURRENT	<0.5mA/ 240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-10 ~ +60°C (Refer to "Derating Curve")
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT	±0.03%/°C (0 ~ 50°C)
VIBRATION	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETYSTANDARDS	UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERS	MTBF	522.1K hrs min. MIL-HDBK-217F (25) °C
DIMENSION	20011050mm (LWH)
PACKING	0.82Kg; 20pcs/16.4Kg
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation.

SPECIFICATION

MODEL
MS-400-5
MS-400-12
MS-400-15
MS-400-24

OUTPUT
DC VOLTAGE
5V
12V
15V
24V
RATED CURRENT
70A
33A
26A
16A
CURRENT RANGE
0 ~ 70A
0-33A
0-26A
0-16A
RATED POWER
350W
396W
390W
384W
RIPPLE & NOISE (max.) Note.2
100mVp-p
100mVp-p
120mVp-p
120mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
10.8 ~ 13.2V
13.5 ~ 16.5V
21.6 ~ 26.4V
VOLTAGE TOLERANCE Note.3
±2.0%
±1.0%
±1.0%
±1.0%
LINE REGULATION
±0.5%
±0.5%
±0.5%
±0.5%
LOAD REGULATION
±1.0%
±0.5%
±0.5%
±0.5%
SETUP, RISE TIME
200ms 100ms
HOLD UP TIME (Typ.)
30ms

INPUT
VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47~63Hz
EFFICIENCY(Typ.)
70%
76%
77%
79%
AC CURRENT (Typ.)
0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.)
COLD START15A/115VAC 30A/230VAC
LEAKAGE CURRENT
<0.5mA/ 240VAC

PROTECTION
OVERLOAD
105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT
WORKING TEMP.
-10 ~ +60°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/°C (0 ~ 50°C)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY &
EMC
(Note 4)
SAFETYSTANDARDS
UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

OTHERS
MTBF
522.1K hrs min. MIL-HDBK-217F (25) °C
DIMENSION
200*110*50mm (L*W*H)
PACKING
0.82Kg; 20pcs/16.4Kg

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
