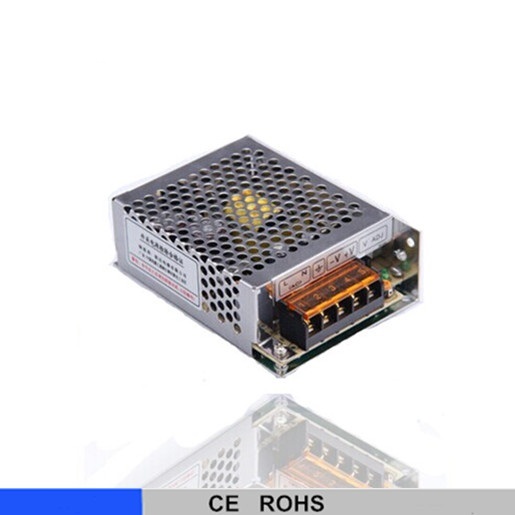

mini type mini size MS series electric industry switching power supply MS series MS-50W
mini type mini size MS series electric industry switching power supply MS series MS-50W Features : • Universal AC input / Full range • Protections:Short circuit/Over load/Over voltage • Cooling by free air convection • 100% full load burn-in test • Fixed switching frequency at 37KHz • 2 years warranty
| Model | MS-50-5 | MS-50-12 | MS-50-15 | MS-50-24 | |
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 10A | 4.2A | 3.4A | 2.1A | |
| Current Range | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A | |
| Rated Power | 50W | 50W | 50W | 50W | |
| Ripple & Noise (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | |
| Voltage Tolerance Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Setup,Rise time | 200ms 100ms | ||||
| Hold time (Typ.) | 30ms | ||||
| Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
| Frequency Range | 47~63HZ | ||||
| Efficiency(Typ.) | 73% | 76% | 77% | 79% | |
| AC Current(Typ.) | 2A/115VAC 1A/230VAC | ||||
| Inrush Current (Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||
| Leakage Current | <0.5mA / 240VAC | ||||
| Protection | Over Load | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| Environment | Working Temperature | -10 ~ +60°c (Refer to "Derating Curve" ) | |||
| Working Humidity | 20~90% RH Non-condensing | ||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
Safety & EMC (Note 4.) | Safety Standards | UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved | |||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | ||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | ||||
| Others | MTBF | 522.1K hrs min. MIL-HDBK-217F (25 °c) | |||
| Dimension | 111*78*36mm (L*W*H) | ||||
| Packing | 0.26Kg; 45pcs/15Kg/0.9CUFT | ||||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. | ||||
