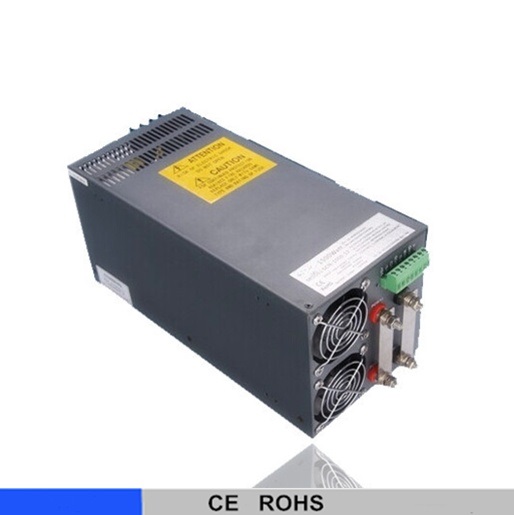

1200W Single output high walt switching power supply 12v 24v
High Efficiency, High Reliability, Low Cost
| MODEL | S-1200-12 | S-1200-15 | S-1200-24 | S-1200-48 | ||||||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |||||
| VOLTAGE TOLERANCE | ± 1% | ± 1% | ± 1% | ± 1% | ||||||
| RATED CURRENT | 100A | 80A | 50A | 25A | ||||||
| CURRENT RANGE | 0-10A | 0-8A | 0-5A | 0-2.5A | ||||||
| RATED POWER | 120W | 120W | 1200W | 1200W | 1200W | 1200W | ||||
| RIPPLE & NOISE(MAX) | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | ||||
| DC VOLTAGE ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ||||
| SETUP, RISE, HOLD UP TIME | 200ms, 100ms, 20ms | |||||||||
| INPUT | VOLTAGE RANGE | 85~132/170~264VAC Selected by Switch, 47~63Hz | ||||||||
| AC CURRENT | 3.2A/115 V 1.6A/ 230 V | |||||||||
| EFFICIENCY | 78% | 80% | 82% | 82% | 84% | 84% | ||||
| INRUSH CURRENT | Cold start 17A/115V 35A/230V | |||||||||
| LEAKAGE CURRENT | < 1 mA/240VAC | |||||||||
| PROTECTION | OVERLOAD PROTECTION | 135%~165% Shut down O/P voltage, re-power on to recover | ||||||||
| OVER-VOLTAGE PROTECTION | ^ ^ | |||||||||
| HIGH TEMPERATURE PROTECTON | ^ ^ | |||||||||
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10º C~+50º C; 20%~90 %RH | ||||||||
| STORAGE TEMP. & HUMIDITY | -20º C~+85º C; 10%~95 %RH | |||||||||
| VIBRATION | 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X. Y. Z axes | |||||||||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | ||||||||
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ | |||||||||
| STANDARDS | SAFETY STANDARDS | Design refer to UL1012 | ||||||||
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 | |||||||||
| OTHERS | WEIGHT | 2.5Kg | ||||||||
| PACKING | 4pcs/ 12Kg | |||||||||
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. | |||||||||
