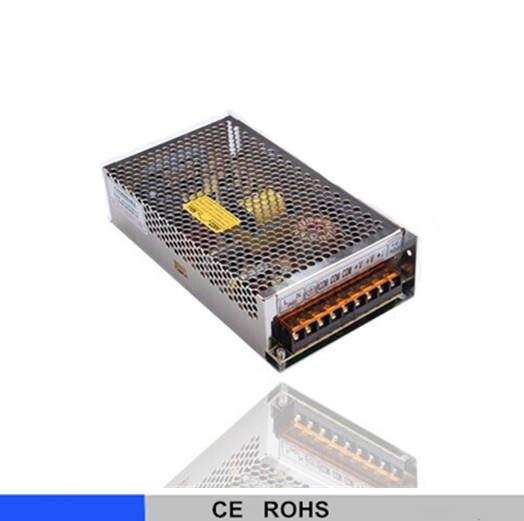

150W Single Switching power supply
150W Single Switching power supply
Features :
• AC input range selectable by switch
• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• 2 years warranty
| MODEL | S-150-5 | S-150-7.5 | S-150-9 | S-150-12 | S-150-13.5 | S-150-15 | S-150-24 | S-150-27 | S-150-48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| CURRENT RANGE | 0 ~ 30A | 0 ~ 20A | 0 ~ 16.7A | 0 ~ 12.5A | 0 ~ 11.2A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 5.6A | 0 ~ 3.2A |
| RATED POWER | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | 240mVp-p | 240mVp-p |
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 6 ~ 8.3V | 8 ~ 10.4V | 10.6 ~ 13.2V | 12 ~ 15V | 13.5 ~ 16.5V | 21 ~ 28V | 24 ~ 30V | 43 ~ 53V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| SETUP, RISE, HOLD TIME | 100ms, 50ms at full load | ||||||||
| HOLD TIME(Typ.) | 28ms at full load | ||||||||
| VOLTAGE RANGE | 88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| AC CURRENT | 3.2A/115VAC 1.6A/230VAC | ||||||||
| INRUSH CURRENT (max.) | COLD START 35A | ||||||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||||||||
| OVERLOAD | 105 ~ 150% rated output power | ||||||||
| Protection type : Shut down o/p voltage, re-power on to recover. | |||||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 8.63 ~ 10.13V | 10.35 ~ 12.2V | 13.8 ~ 16.2V | 15.53 ~ 18.2V | 17.25 ~ 20.3V | 30 ~ 34.8V | 31.1 ~ 36.45V | 55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover. | |||||||||
| WORKING TEMP. | -10 ~ +60ºC (Refer to output load derating curve) | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY STANDARDS | Design refer to UL1012, UL60950-1, TUV EN60950-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | ||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | ||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A | ||||||||
| MTBF | 286.7K hrs min. MIL-HDBK-217F (25ºC) | ||||||||
| DIMENSION | 199*110*50mm (L*W*H) | ||||||||
| PACKING | 0.757Kg; 16pcs/13.67Kg/0.0287CMB | ||||||||
OVERALL DIMENSION(Unit:mm)
