Features :
• AC input range selected by switch
• Protections:Short circuit/Over load
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 37KHz
• Lost cost
• High reliability
• 2 years warranty
| Model | S-15-5 | S-15-12 | S-15-15 | S-15-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Rated output current | 3A | 1.3A | 1A | 0.7A |
| Output current rage | 0-3A | 0-1.3A | 0-1A | 0-0.7A |
| Wave and noise | 50mVp-p | 50mVp-p | 75mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 65% | 68% | 70% | 72% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | AC100~240V 47~63Hz;240~370VDC | |||
| Input current | 0.5A/115V0.25A/230V | |||
| AC INnrush current | Cold-start current 15A/115V 30A/230V | |||
| Overload proctection | 105%~150% Tpye:Foldback current limiting Reset: auto recovery | |||
| Over-voltage protection | ||||
| Setup rise hold up time | 200s,100ms,30ms | |||
| Withstand voltage | Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC | |||
| Isolation resistance | Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ | |||
| Working temperature | -10°C~+50°C | |||

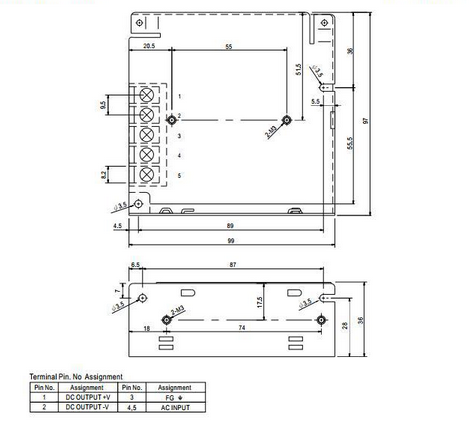

| Overall dimension | 98*97*35mm | |||
| Safety standards | Meet ULGB4943 UL60950 EN60950 requirement | |||
| EMC standards | Meet EN55022 GB9254 class A requirement | |||
| Weight | 0.3Kgs | |||
