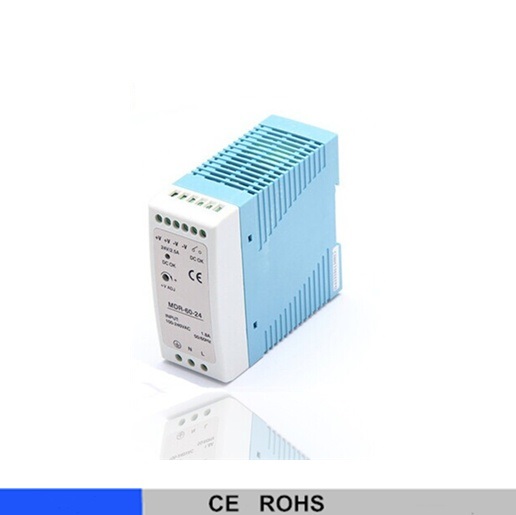

MDR60w Industrial DIN Rail power supply

MDR60w Industrial DIN Rail power supply

60W dinrail switching power supply

Universal AC input/full range
Protections: Short circuit/over load/over voltage
Cooling by free air convection
Can be installed on DIN-Rail: TS-35/7.5 or TS-35/15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
1 year warranty

Model		MDR-60-5	MDR-60-12	MDR-60-24	MDR-60-48
Output	DC output Voltage	5V	12V	24V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	10A	5A	2.5A	1.25A
	Related Power	50w	60w	60w	60w
	Wave&Noise	80mVp-p	120mVp-p	150mVp-p	150mVp-p
	Voltage ADJ range	5-6V	12-15V	24-30V	48-56V
	Set up,rise time	500ms 30ms/230VAC 500ms,30ms/115VAC at full load
	hold up time	120ms/230VAC 25ms/115VAC at full load
Input	Voltage Range	85 ~ 264VAC 47-63HZ 120-370VDC
	Input Current	1.8A/115VAC 1A/230VAC
	Efficiency	78%	86%	88%%	87%
	AC inrush current	Cold start current 30A/115V 60A/230VAC
	Leakage current	<1mA/240VAC
Protection	Overload	Above 105% rated output power
		hiccup mode, recovery automatically after fault condistion is removed
	Over voltage	6.25-7.25V	15.6-18V	31.6-36V	57.6-64.8V
		Shut down o/p voltage, re-power on to recover
Function	DC OK active single	Relay contact rating(max) :30V/1A resistive
Environment	Working temp humidity	-20~+70°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	safety standards	UL508,TUV EN60950-1 approved
	Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 /70%RH
	EMC emission	Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3
Size	size	4090100mm (WHD)
	Package	0.33kg,42pcs/15kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
