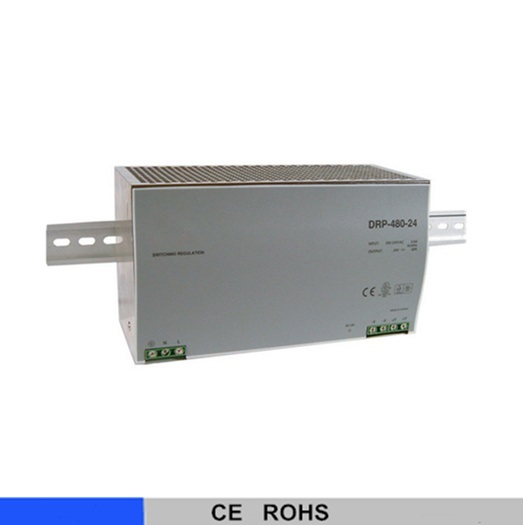

480W 24V 36V 48V Single group rail type switching power supply DRP-480W
480W 24V 36V 48V Single group rail type switching power supply DRP-480W
| Model | DRP-480-24 | DRP-480-36 | DRP-480-48 | ||
| Output | DC output Voltage | 24V | 36V | 48V | |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ||
| Rated Current | 20A | 13.5A | 10A | ||
| Related Power | 480w | 480w | 480w | ||
| Wave&Noise | 80mVp-p | 150mVp-p | 150mVp-p | ||
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ||
| Set up,rise,hold up time | 800ms 40ms 20ms | ||||
| Input | Voltage Range | ||||
| Input Current | 4.5A/115VAC 0.5A/230VAC | ||||
| Efficiency | 80% | 85%% | 85% | ||
| AC inrush current | Cold start current 15A/115V 30A /230VAC | ||||
| Leakage current | <0.5mA/240VAC | ||||
| Protection | Overload | ||||
| Protection type: cutoff output, recovery after restart power | |||||
| Over voltage | 13.8V-16.2V | 55.2V-64.8V | |||
| Hiccup mode,recovers automatically after fault condition | |||||
| Environment | Working temp humidity | ||||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Safety | Withstand voltage | ||||
| I/P-FG:1.5KVAC 1min | |||||
| O/P-FG:0.5KVAC 1min | |||||
| Standard | Safety standard | ||||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||
| Size | 227*125.2*100mm | ||||
| Package | 1.2kg, 16 pcs/20kg | ||||
