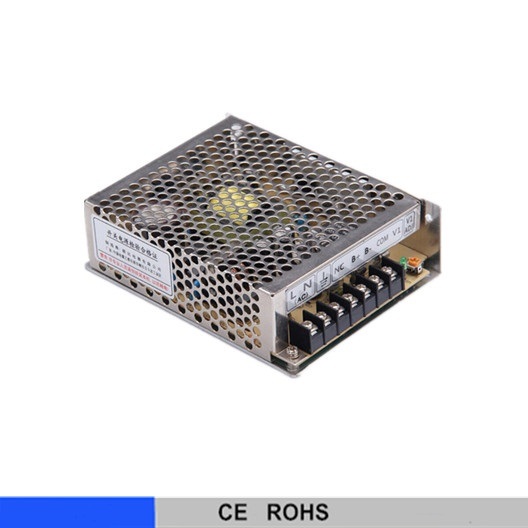

55W Dual Output with Battery Charger (UPS Function) ADD-55 series

55W Dual Output with Battery Charger (UPS Function)      ADD-55 series

Features

Ÿ Universal AC input / Full range

Ÿ Protections: Short circuit / Overload / Over voltage

Ÿ Battery low protection (except for ADS series)

Ÿ DC alarm signal (optional)

Ÿ Cooling by free air convection

Ÿ Fixed switching frequency at 45kHz

Ÿ Approvals: UL / CUL / TUV /CB/CE

Ÿ 100% full load burn-in test

Ÿ 2 years warranty

General Specification

AC input voltage range..................88~264VAC; 124~370VDC

AC inrush current...........................Cold start, 20A at 115VAC, 40A at 230VAC

DC adjustment range.....................12V, 24V: ±10%

                                                    13.8V: 12~14.5V; 27.6V: 24~29V

Overload protection.......................105%~150% hiccup mode, auto-recovery

Overvoltage protection..................CH1: 105%~135% rated output voltage

Setup, rise, hold up time................800ms, 50ms, 80ms at full load and 230VAC

Withstand voltage..........................I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute

Working temperature.....................-10~60 °C (refer to output derating curve)

Safety standards...........................UL60950-1, TUV EN60950-1 approved

EMC standards.............................EN55022 class B, EN61000-3-2,3,

                                                    EN61000-4-2,3,4,5,6,8,11, ENV50204

Connection...................................8P/ 8.25mm pitch terminal block

Packing........................................0.57kg ; 24pcs / 13.7kg / 0.75CUFT

Dual Output with Battery Charger (UPS Function)
