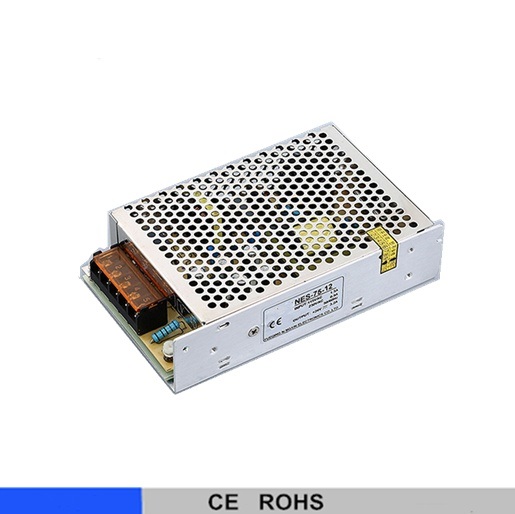

NES-75W HIGH EFFICIENCY SWITCHING POWER SUPPLY 75W
Features :
•Universal AC input/Full range
•Protections: Short circuit / Overload / Over voltage
•Cooling by free air convection
•100% full load burn-in test
•2 years warranty
MODEL | NES-75-5 | NES-75-12 | NES-75-15 | NES-75-24 | NES-75-48 | |
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
RATED CURRENT | 14A | 6.2A | 5A | 3.2A | 1.6A | |
CURRENT RANGE | 0-14A | 0 ~ 6.2A | 0-5A | 0-3.2A | 0-1.6A | |
RATED POWER | 70W | 74.4W | 75W | 76.8W | 76.8W | |
RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
VOLTAGE ADJ. RANGE | 4.75 - 5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | 43.2 - 52.8V | |
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION Note.4 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION Note.5 | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE TIME | 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load | |||||
HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | |||||
INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120-370VDC | ||||
FREQUENCY RANGE | 47 - 63Hz | |||||
EFFICIENCY (Typ.) | 77% | 82% | 83% | 86% | 87% | |
AC CURRENT (Typ.) | 1.5A/115VAC 0.9 A/230VAC | |||||
INRUSH CURRENT (Typ.) | COLD START 45A | |||||
LEAKAGE CURRENT | <2mA/240VAC | |||||
PROTECTION | OVERLOAD | 105 ~135% | 110 ~ 150% rated output power | |||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||
OVERVOLTAGE | 5.75 ~ 6.75V | 13.8-16.2V | 17.25-20.25 | 27.6 - 32.4V | 55.2 - 64.8V | |
Protection type: Shut down o/p voltage, re-power on to recover | ||||||
ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C (Refer to "Derating Curve") | ||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH | |||||
TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 45°C) | |||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||||
SAFETY & EMC (Note 7) | SAFETY STANDARDS Note.6 | UL60950-1, CB(IEC60950-1),CCC GB4943.1:2011 approved | ||||
WITHSTAND VOLTAGE | l/P-0/P:1.5KVAC l/P-FG:1.5KVAC 0/P-FG:0.5KVAC | |||||
ISOLATION RESISTANCE | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A | |||||
OTHERS | MTBF | 378.2K hrs min. MIL-HDBK-217F (25°C) | ||||
DIMENSION | 159*97*38mm (L*W*H) | |||||
PACKING | 0.52Kg; 30pcs/16.6Kg/0.97CUFT | |||||
