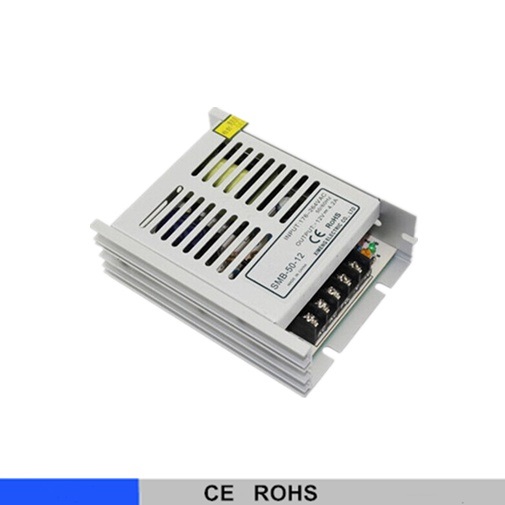

50W Ultra-Thin Single Output Switching Power Supply 12v 24v 5v
| Model | SMB-50-5 | SMB-50-12 | SMB-50-24 | SMB-50-48 | |
| Output | DC output Voltage | 5V | 12V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 10A | 4.2A | 2.1A | 1.0A | |
| Related Power | 50w | 50w | 50w | 50w | |
| Wave&Noise | 50mVp-p | 50mVp-p | 70mVp-p | 70mVp-p | |
| Adjustable DC Voltage | ±10% | ±10% | ±10% | ±10% | |
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||
| Input | Voltage Range | 170-264VAC 47-63HZ 240-370VDC | |||
| Input Current | 0.5A/230VAC | ||||
| Efficiency | 78% | 80% | 84% | 87% | |
| AC inrush current | Cold start current 50A /230VAC | ||||
| Leakage current | <0.5mA/240VAC | ||||
| Protection | Overload | Related output power 105-150% start overload protection | |||
| Protection type: cutoff output, recovery after restart power | |||||
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 27.6V-32.4V | 55.2V-64.8V | |
| Hiccup mode,recovers automatically after fault condition | |||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min | |||
| I/P-FG:1.5KVAC 1min | |||||
| O/P-FG:0.5KVAC 1min | |||||
| Standard | Safety standard | Fit UL1012 | |||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||
| Size | size | L112*W88*H34mm | |||
| Package | 0.3kg | ||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 DEGREE of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation | |||||
